Zhejiang Oulu Automatic Equipment Co., Ltd. Short Description: Description: Micro-duct connector providing gas tight seal connection around the cable inside. When opened, cable can be blown through this connector And sealed afterwards by rotating ring. They operate safely at blowing pressure of 10 Bar And protect the inner cavity of your micro-ducts against ingress of any particles.Should be installed always at the entry transition points to the buildings, ODFs etc. where water or gas presence is the matter of danger. Two locking clips can be ordered separately to prevent micro-ducts self release. Main features: ① Available for wide range of micro-duct sizes OD 4–16 ② Push-fit system ③ Transparent body ④ Body material: polycarbonate ⑤ Sealing: up to 0,3 bars ⑥ Packaging: bag
Microduct gas block connector for building and ODF entry transitions

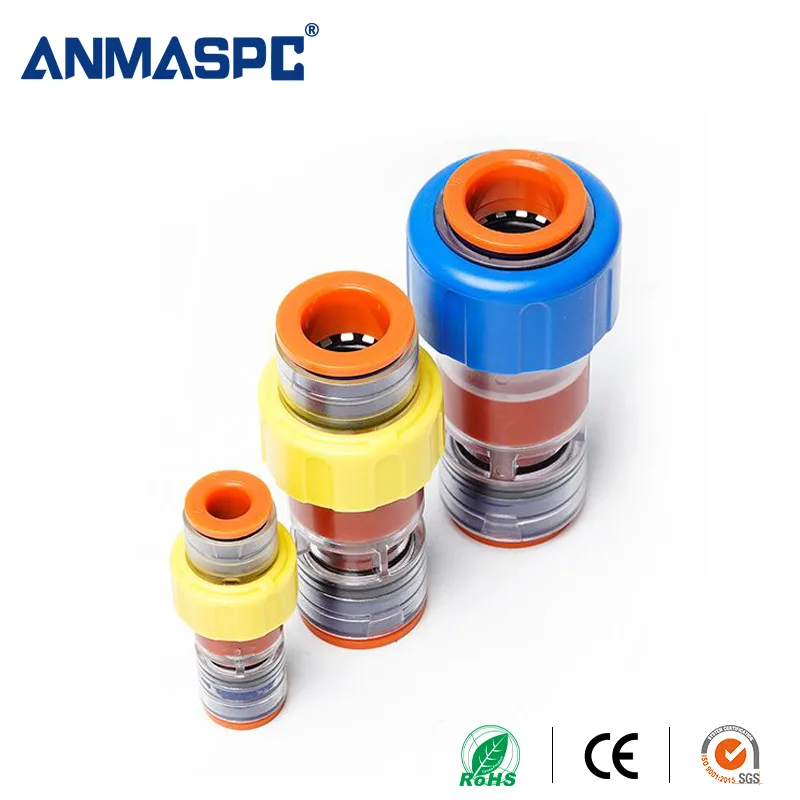

This microduct gas block connector is presented for creating a gas-tight seal around a cable inside a microduct.
The source describes an open-then-seal workflow, rotating-ring closure, 4-16 mm microduct OD coverage, a transparent body and supplier-stated pressure and IP68 data. Confirm the selected FZA code and current test evidence.
TECHNICAL DETAILS
Published product facts

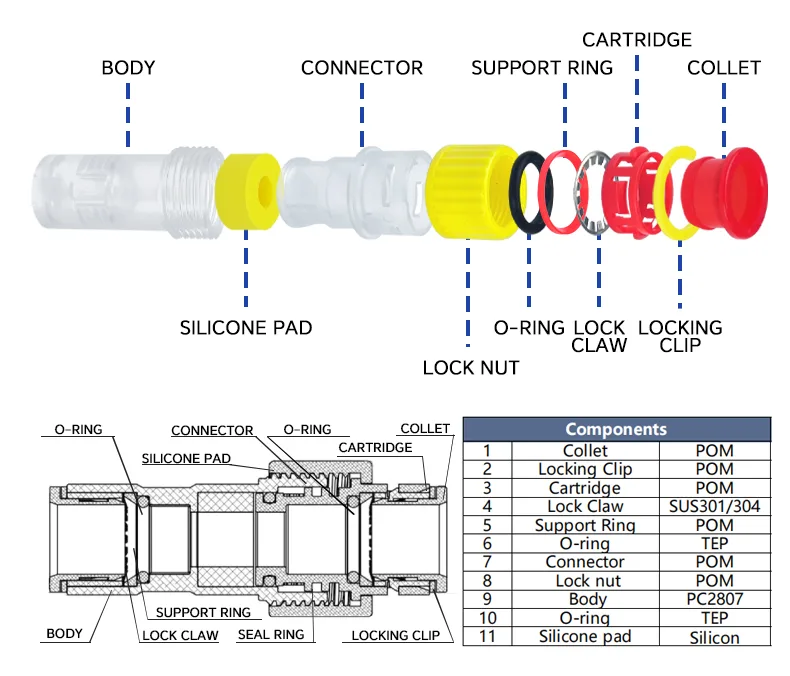

Components
1
Collet
POM
2
Locking Clip
POM
3
Cartridge
POM
4
Lock Claw
SUS301/304
5
Support Ring
POM
6
O-ring
TEP
7
Connector
POM
8
Lock nut
POM
9
Body
PC2807
10
O-ring
TEP
11
Silicone pad
Silicon rubber
Fit Tube
Pipe material
HDPE、PE、Nylon、Polyurethane
Outer diameter of pipe
Φ3,Φ4,Φ5,Φ6,Φ7,Φ8,Φ10,Φ12,Φ16,Φ18,Φ20
Technical parameter
Working with fluids
Air
Tightness
0.15~0.8MPa
Pull test
400N
Proof pressure
2.5MPa
Operating pressure range
0~1.6MPa
Ambient temperature and fluid temperature
-40~60℃
Degree of protection
IP68
Insertion force
50N max(5kg)
TABLE OF ARTICLES
ANMASPC Code
Pipe OD/ID
Pipe OD/ID
Cable blocking range
FZA5/3.5
5/3.5
5/3.5
0.5-2.1
FZA5/3.5
5/3.5
5/3.5
0.9-3.5
FZA7/5.5
7/5.5
7/5.5
0.9~3.5
FZA7/5.5
7/5.5
7/5.5
1-4
FZA7/5.5
7/5.5
7/5.5
2-5.5
FZA8/6
8/6
8/6
0.9~3.5
FZA10/8
10/8
10/8
3-6
FZA10/8
10/8
10/8
5-8
FZA12/10
12/10
12/10
3~6
FZA12/10
12/10
12/10
5~8
FZA12/10
12/10
12/10
7-10
FZA14/12
14/12
14/12
3~6
FZA14/12
14/12
14/12
5~8
FZA14/12
14/12
14/12
7~10
FZA14/12
14/12
14/12
9-12
FZA16/12
16/12
16/12
3~6
FZA16/12
16/12
16/12
5~8
FZA16/12
16/12
16/12
7~10
FZA18/15
18/15
18/15
7-10
FZA18/15
18/15
18/15
9-12
FZA20/16
20/16
20/16
12~16

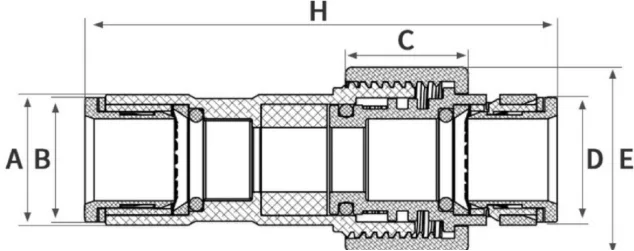

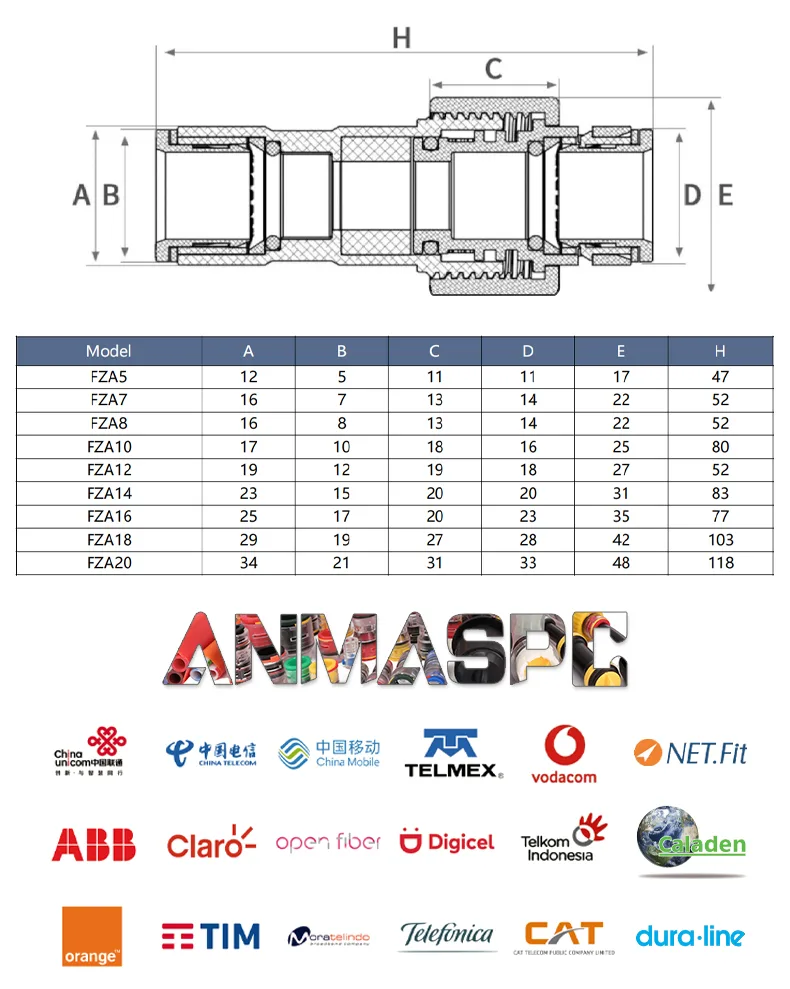

Overall Dimensions
Model
A
B
C
D
E
H
FZA5
12
5
11
11
17
47
FZA7
16
7
13
14
22
52
FZA8
16
8
13
14
22
52
FZA10
17
10
18
16
25
80
FZA12
19
12
19
18
27
52
FZA14
23
15
20
20
31
83
FZA16
25
17
20
23
35
77
FZA18
29
19
27
28
42
103
FZA20
34
21
31
33
48
118
PRODUCT DETAIL IMAGES
Product Detail
The original product detail images are retained for visual reference. Confirm the quoted model, dimensions and test requirements before ordering.
SELECTION GUIDE
Selecting a gas block for an entry transition
Use these checkpoints to prepare a product-specific enquiry and close the fit, test and documentation questions before ordering.
Measure the ductProvide actual microduct OD/ID and material.
Measure the cableSend cable diameter and identify whether it is already installed or will be blown.
Define the transitionState building entry, ODF, cabinet and gas or water exposure.
Request evidenceConfirm FZA code, pressure and sealing tests, clips, quantity, packing and documents.
OEM & PROJECT CAPABILITY
Company capability for telecom supply
Oulu Automatic Equipment presents itself as a supplier of microduct connectors, HDPE microduct systems, cable blowing accessories and pneumatic fittings for telecom contractors, distributors and OEM partners.
The supplier’s Service page describes support from product consultation and customized solutions through production, delivery and after-sales. Include these details in a product enquiry:
Provide actual microduct OD/ID and material.
Target quantity, model or size mix, sample needs and packing preference.
Drawings, route conditions, pressure or sealing tests and compliance documents.
Current MOQ, price, freight, sample timing and production timing to be confirmed in the quotation.
Company-level support and commercial terms should be reconfirmed for the selected product and order.
