This 24-way DB HDPE microduct tube bundle is presented for direct-bury and indoor fiber-unit air-blowing projects.
The source states 5/3.5 mm inner ducts, 3.4 mm PE sheath, 36.8 mm bundle OD, at least 6,000 N tensile strength, 2,000 N crush load and a 920 mm minimum bend radius. Confirm route design and current batch evidence.
TECHNICAL DETAILS
Published product facts
아이템
Published information
Product type
24-way DB tube bundle for FTTH
Inner microduct
5 mm outside diameter / 3.5 mm inside diameter
Bundle dimensions
36.8 mm outer diameter ±1.5 mm; 3.4 mm PE sheath
Supplier-stated mechanics
Tensile strength ≥6,000 N; crush 2,000 N; impact 15 J; minimum bend radius 920 mm
Temperature statements
Storage -40 to +70 °C; installation -30 to +50 °C; operating -40 to +70 °C

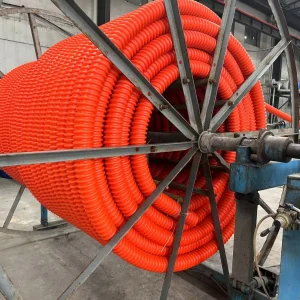

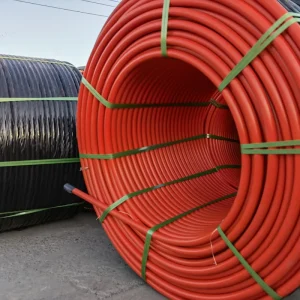

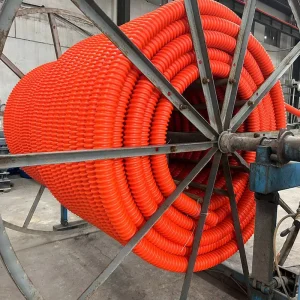

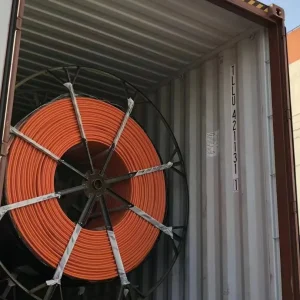

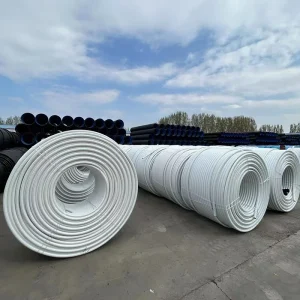

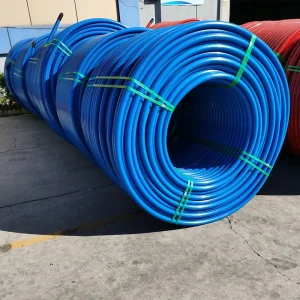

PRODUCT DETAIL IMAGES

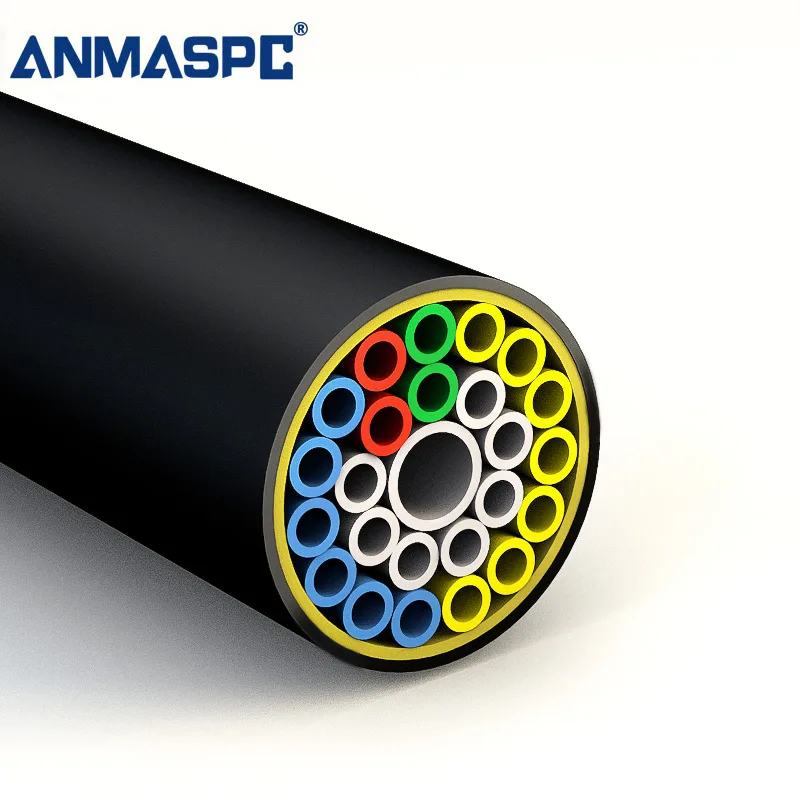

Product Detail
The original product detail images are retained for visual reference. Confirm the quoted model, dimensions and test requirements before ordering.
SELECTION GUIDE
Selecting a 24-way 5/3.5 mm tube bundle
Use these checkpoints to prepare a product-specific enquiry and close the fit, test and documentation questions before ordering.
Confirm capacityMatch 24 pathways to fiber count and spare capacity.
Check duct fitConfirm 5/3.5 mm inner dimensions and cable-blowing clearance.
Plan civil handlingUse 36.8 mm bundle OD and 920 mm minimum bend radius in the route plan.
Oulu Automatic Equipment presents itself as a supplier of microduct connectors, HDPE microduct systems, cable blowing accessories and pneumatic fittings for telecom contractors, distributors and OEM partners.
The supplier’s Service page describes support from product consultation and customized solutions through production, delivery and after-sales. Include these details in a product enquiry:
Match 24 pathways to fiber count and spare capacity.
Target quantity, model or size mix, sample needs and packing preference.
Drawings, route conditions, pressure or sealing tests and compliance documents.
Current MOQ, price, freight, sample timing and production timing to be confirmed in the quotation.
Company-level support and commercial terms should be reconfirmed for the selected product and order.
Share dimensions, route conditions and quantities for a product-specific quotation.Send product requirements
