Tapa final para microtubo

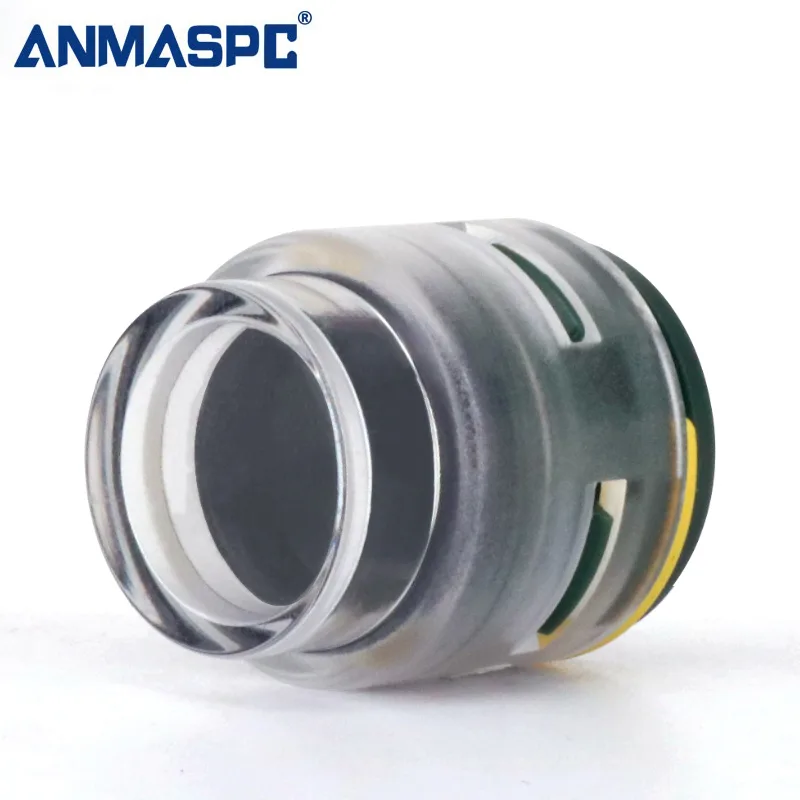

Transparent microduct ending cap for open tube termination

This transparent microduct ending cap is presented for terminating open tubes to help avoid air leakage and the ingress of water or other material.

Supplier data lists a preassembled safety clip, push-fit connection, a maximum working pressure of 25 bar and published FPF sizes from 3–20 mm outside diameter.

Key details

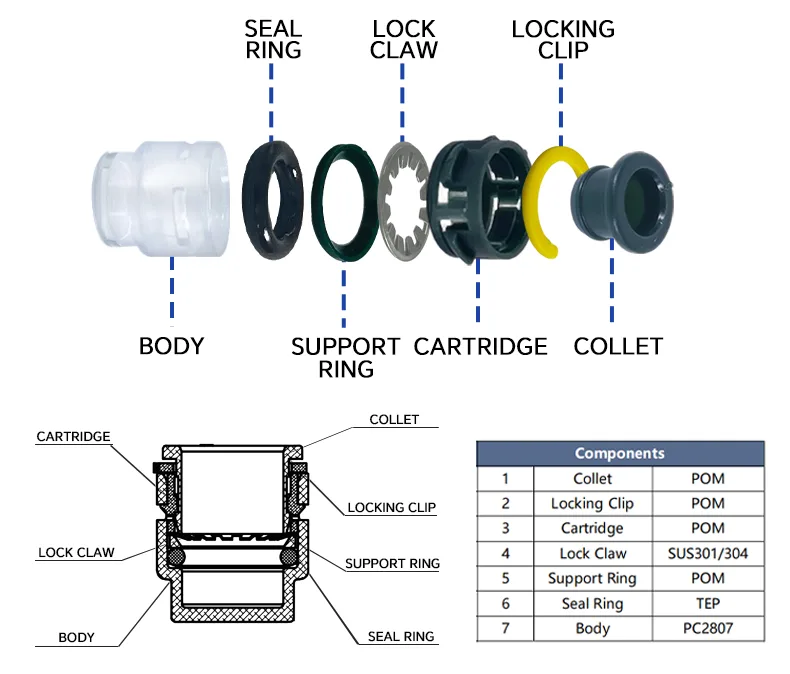

							Componentes
							1	Casquillo		POM
							2	Pinza de bloqueo		POM
							3	Cartucho		ALEACIÓN DE ZINC
							4	Garra de bloqueo		SUS301/304
							5	Anillo de soporte		POM
							6	Anillo de sello		TEP
							7	Cuerpo		PC2807
Tubo de resistencia
Material de la tubería						HDPE、PE、Nylon、Polyurethane
Diámetro exterior de la tubería						Φ3,Φ4,Φ5,Φ6,Φ7,Φ8,Φ10,Φ12,Φ16,Φ18,Φ20
Technical Parameter
Trabajando con fluidos						Aire
Tensión						0,15~0,8 MPa Sin fugas
Prueba de tracción						400N
Presión de prueba						2,5 MPa
Rango de presión de operación						0~1,6 MPa
Temperatura ambiente y temperatura del fluido						-40~60℃
Temperatura de instalación						-10℃/+50℃
Temperatura de soplado recomendada						-15℃/+35℃
Grado de protección						IP68
Grado resistente a los rayos UV						F1
Fuerza de inserción						50N máx(5kg)
Esperanza de vida:						25 años
Estándares:						EN 50411-2-8
Especificaciones y dimensiones
Código ANMASPC						OD/ID
FPF3						3
FPF4						4
FPF5						5
FPF6						6
FPF7						7
FPF8						8
FPF10						10
FPF12						12
FPF14						14
FPF16						16
FPF18						18
FPF20						20

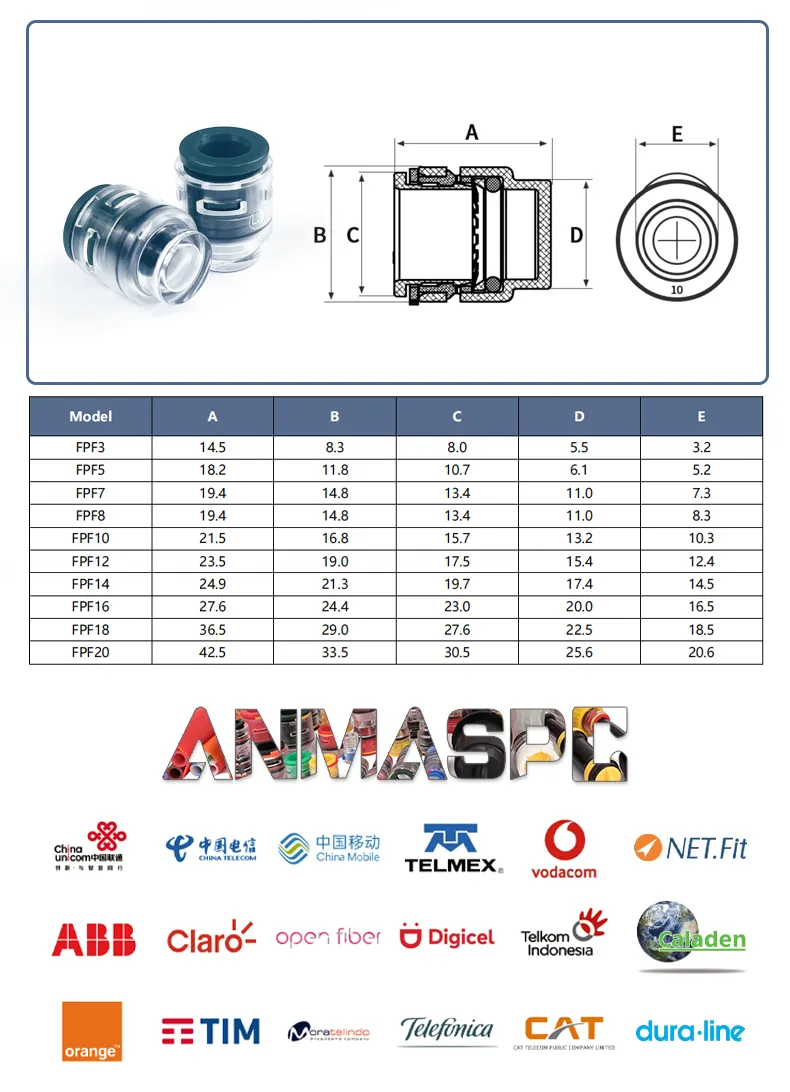

Dimensiones totales
Modelo		A		B		C		D		E
FPF3		14.5		8.3		8		5.5		3.2
FPF5		18.2		11.8		10.7		6.1		5.2
FPF7		19.4		14.8		13.4		11		7.3
FPF8		19.4		14.8		13.4		11		8.3
FPF10		21.5		16.8		15.7		13.2		10.3
FPF12		23.5		19		17.5		15.4		12.4
FPF14		24.9		21.3		19.7		17.4		14.5
FPF16		27.6		24.4		23		20		16.5
FPF18		36.5		29		27.6		22.5		18.5
FPF20		42.5		33.5		30.5		25.6		20.6

Choosing an ending cap for an open microduct

Use these checkpoints to prepare a product-specific enquiry and avoid selecting by a general trade name alone.

1. Measure the open tube: Provide the outside diameter and confirm the matching FPF article code within the published 3–20 mm range.
2. Describe the environment: State whether the cap is for storage, installation, a chamber or another telecom route location.
3. Confirm the pressure need: Compare the published 25 bar maximum with the actual operating or test condition.
4. Plan procurement: Request the exact size, quantity, packing, sample and documentation in one enquiry.

OEM & PROJECT CAPABILITY

Company capability for telecom supply

Oulu Automatic Equipment presents itself as a supplier of microduct connectors, HDPE microduct systems, cable blowing accessories and pneumatic fittings for telecom contractors, distributors and OEM partners.

Explore company capabilities

B2B SOURCING SUPPORT

B2B purchasing support

The supplier’s Service page describes support from product consultation and customized solutions through production, delivery and after-sales. For a product-specific enquiry, include:

• Provide the outside diameter and confirm the matching FPF article code within the published 3–20 mm range.
• Target quantity by size or model, sample needs, mixed specifications and packing preference.
• Project drawings, pressure or sealing requirements, and required compliance or export documents.
• Current MOQ, payment, freight, sample timing and production timing to be confirmed in the quotation.

Company-level service statements and commercial terms should be reconfirmed for the selected product and order.

Share dimensions, route conditions and quantities for a product-specific quotation.
Send product requirements

PRODUCT DETAIL IMAGES

Product Detail

Preguntas frecuentes

What is a microduct used for?

A microduct provides a protected path for a telecom or fiber cable. An ending cap closes the tube while it is open or unused.

What is a microduct ending cap used for?

It terminates an open tube and is described as helping avoid air leakage and the ingress of water or other material.

What are the standard sizes of microducts?

Sizes vary by network. This ending-cap family publishes FPF3–FPF20 versions for 3–20 mm outside diameter.

How is a push-fit microduct end cap installed?

The supplier describes a push-fit cap with a preassembled safety clip. Confirm tube preparation, insertion and removal steps for the selected size.

What pressure rating does the ending cap have?

The supplier publishes a maximum working pressure of 25 bar. Request the applicable test data for the project’s pressure condition.

How do I request the correct FTTH duct end seal?

Send the tube outside diameter, material, route environment, pressure or sealing requirement, quantity and requested documentation.
