HDPE cijev 19ways 7/3.5mm PE1.2mm galerijska slika 1

HDPE mikrokanali

HDPE cijev 19ways 7/3.5mm PE1.2mm

Zhejiang Oulu Automatic Equipment Co., Ltd. Short Description: Essential details Model Number:19ways 7/3.5mm DB Tube Bundle Type:Micro Duct & Tube Bundle Place of Origin:Wenzhou, China Brand Name:ANMASPC Use:FTTH Warranty Time:12months Network:None Sub duct Inner diameter:3.5mm Sub duct outer diameter:7mm PE Sheath:1.2mm Outer Diameter::44.4mm (±1.2mm) Melt flow index:0.1 ~ 0.4 g/10 minutes Density:Min. 0.940 g/cm3 Tensile strength at yield:Min. 20MPa Elongation at the break:Min 350% Environmental stress crack resist (F50):Min. 96 hours Kink:≤140mm Supply Ability：1000000 Meter/Meters per Week FOB Price: US $0.5 - 9,999 / Piece Min.Order Quantity: 100 Piece/Pieces Supply Ability: 10000 Piece/Pieces per Month

KategorijaHDPE mikrokanali
Pošalji upit Detalji o proizvodu

HDPE MICRODUCTS

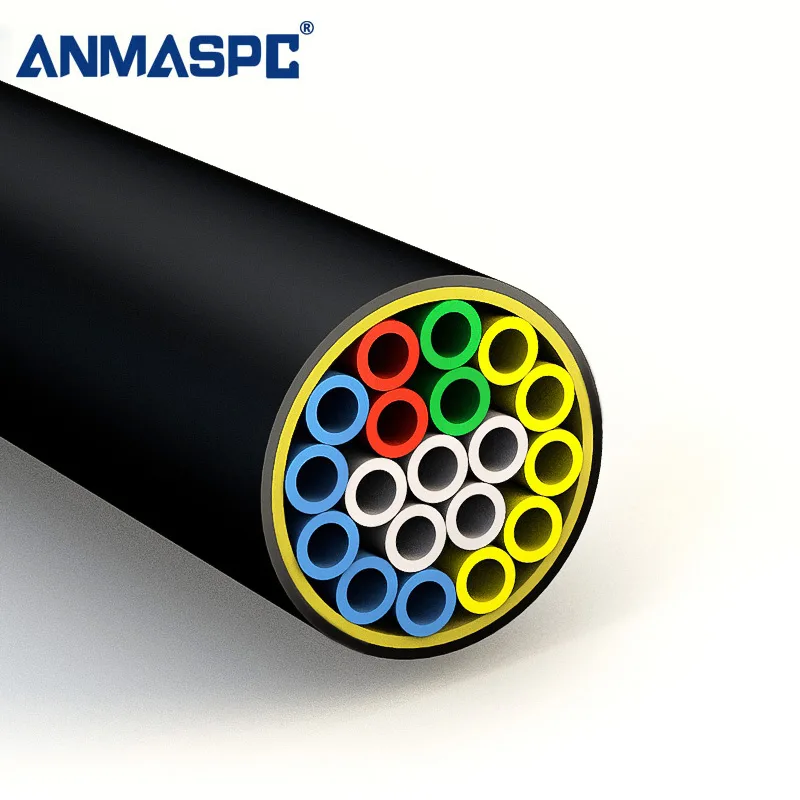

19-way 7/3.5 mm HDPE microduct tube bundle

This 19-way HDPE microduct tube bundle is presented for FTTH and air-blown fiber projects using 7/3.5 mm inner microducts.

The source states a 44.4 mm bundle outside diameter, 1.2 mm PE sheath, at least 470 N inner-duct tensile strength, 2,500 N crush load for the bundle and a 84 mm minimum inner-duct bend radius. Confirm the project drawing and batch tests.

TECHNICAL DETAILS

Published product facts

Physical and Mechanical Properties – Inner Micro duct 7/3.5mm
1
Vizuelni izgled
Vizuelni pregled
Unutrašnja površina rebrasta, a vanjska glatka, bez mjehurića, uvlačenja, ljuštenja, ogrebotina i hrapavosti.
2
Vanjski promjer
 ANMASPC
7.0mm ± 0.1mm
3
Debljina zida
 ANMASPC
1.50mm ± 0.10mm
4
Slobodan unutrašnji promjer
Duhanje čelične kugle
Čelična kuglica promjera 3,0 mm može slobodno proći kroz kanal.
5
Ovalnost
 ANMASPC
≤ 5%
6
Pritiskanje
5 minuta @16 bar svakom kanalu
Nema oštećenja i curenja
7
Perverzija
IEC 60794-1-2 Metoda E10
≤ 70mm
8
Čvrstoća na vuču
Stopa proširenja:
100 mm/min
≥ 470N
9
Smrskaj
Dužina uzorka: 250 mm
Opterećenje: 1650N
Trajanje maksimalnog opterećenja: 1 min
Vrijeme oporavka: 1 sat
Nema preostale deformacije unutrašnjeg i vanjskog prečnika veće od 15%; mora proći test tolerancije unutrašnjeg prečnika.
10
Uticaj
IEC 60794-1-2 Metoda E4
1.0 J udar, vrijeme oporavka 1 sat
Nema preostale deformacije unutrašnjeg i vanjskog prečnika veće od 15%; mora proći test tolerancije unutrašnjeg prečnika.
11
Povrat toplote
110℃ ～ 23℃, 1 hour
≤ 3%
12
Min. radijus savijanja
84mm
Nema preostale deformacije unutrašnjeg i vanjskog prečnika veće od 15%; mora proći test tolerancije unutrašnjeg prečnika.
13
Koeficijent trenja
750mm Diameter, 450°loop, 5kg mass
≤ 0.1
14
Boja i štampa
Vizuelni pregled
Prema specifikaciji kupca
Pozicija.
Stavka
Specifikacija
1
Izgled
Glatki vanjski zid (UV-stabiliziran) bez vidljivih nečistoća; dobro odmjerenu boju, bez mjehurića ili pukotina; s definiranim oznakama
na vanjskom zidu.
2
Čvrstoća na vuču
Koristite Pull čarape za zatezanje uzorka u skladu sa tabelom ispod:
Dužina uzorka: 1 m
Brzina vučenja: 20 mm/min
Load: 9000N
Trajanje napetosti: 5 min.
Nema vidljivog oštećenja niti preostale deformacije veće od 151 TP3T vanjskog prečnika sklopljenog kanala.
3
Otpornost na drobljenje
A 250mm sample after 1 minute load time and 1 hour recovery time. Load (plate) shall be 2500N. The imprint of the plate on the
Ovojnica se ne smatra mehaničkom oštećenjem.
Nema vidljivog oštećenja niti preostale deformacije veće od 151 TP3T vanjskog prečnika sklopljenog kanala.
4
Uticaj
Striking surface radius shall be 10mm and impact energy 10J. Recovery time shall be one out. The imprint of the striking surface
on the microduct is not considered as mechanical damage.
Nema vidljivog oštećenja niti preostale deformacije veće od 151 TP3T vanjskog prečnika sklopljenog kanala.
5
Savijanje
Promjer mandrila treba biti 40× vanjski promjer uzorka, 4 navoja, 3 ciklusa.
Nema vidljivog oštećenja niti preostale deformacije veće od 151 TP3T vanjskog prečnika sklopljenog kanala.

PRODUCT DETAIL IMAGES

Product Detail

The original product detail images are retained for visual reference. Confirm the quoted model, dimensions and test requirements before ordering.

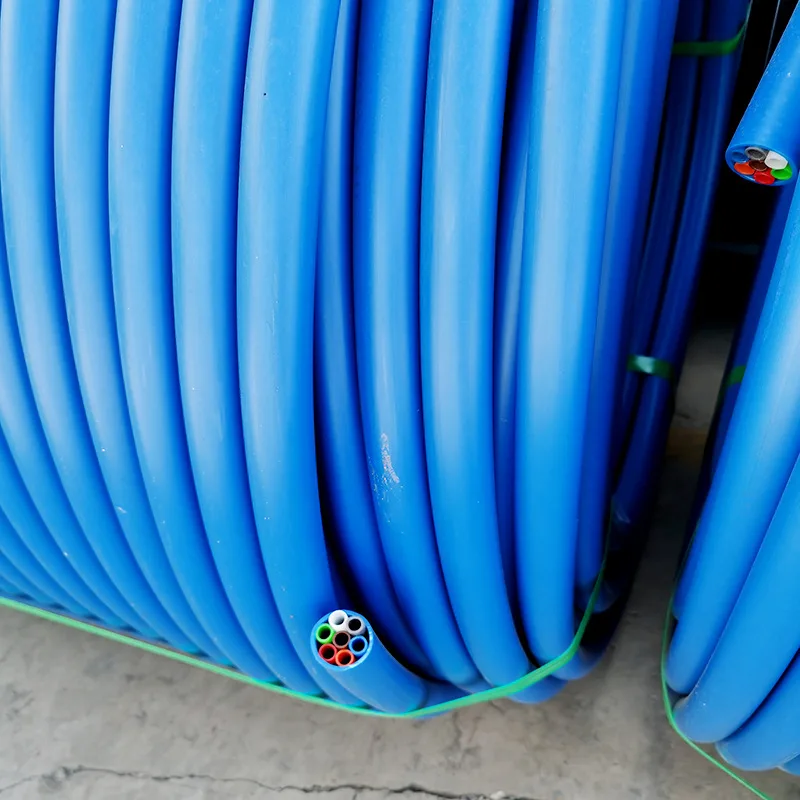

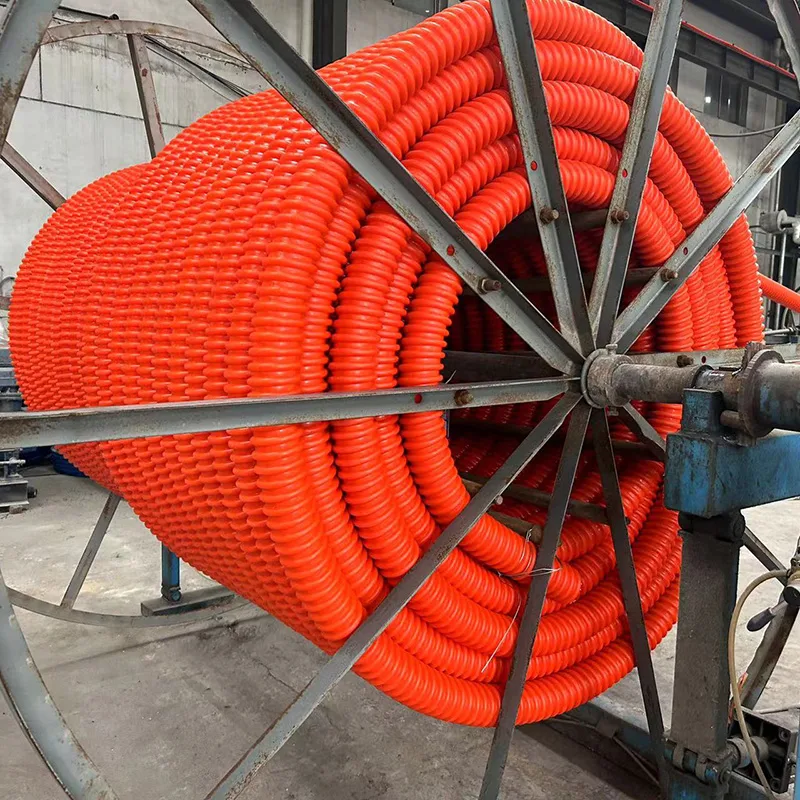

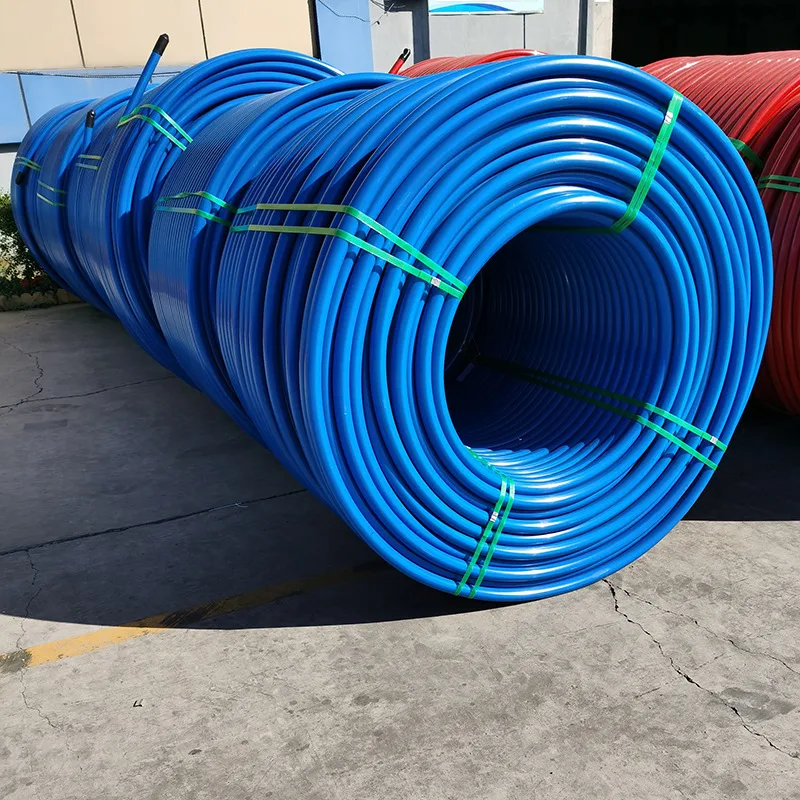

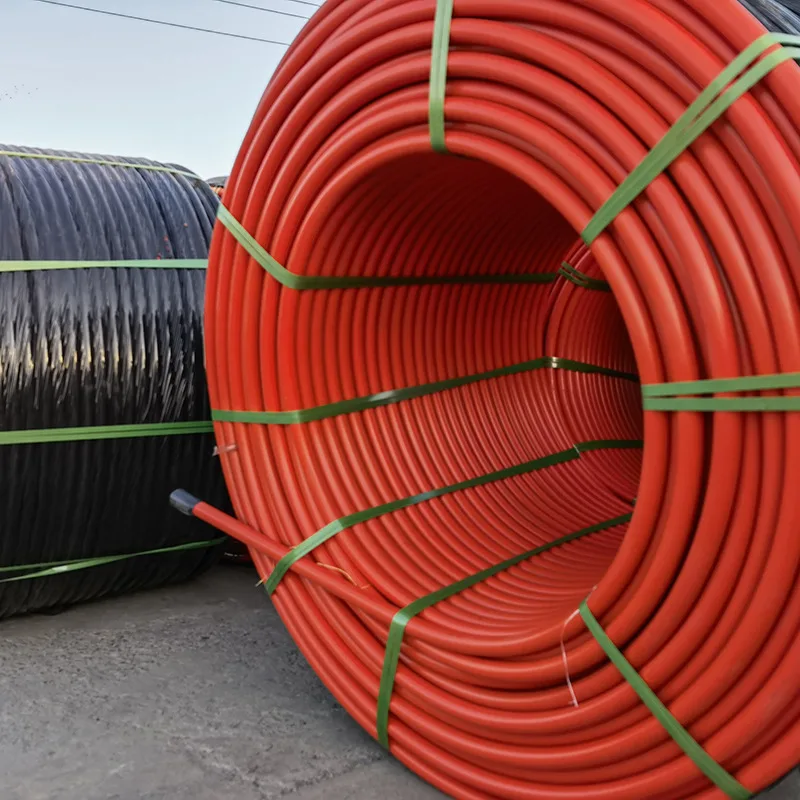

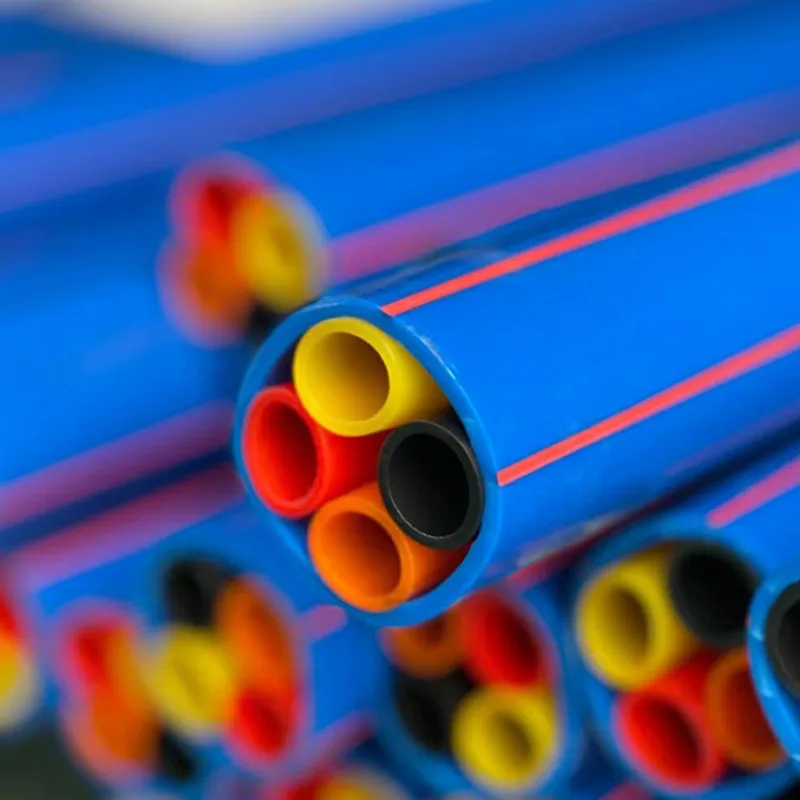

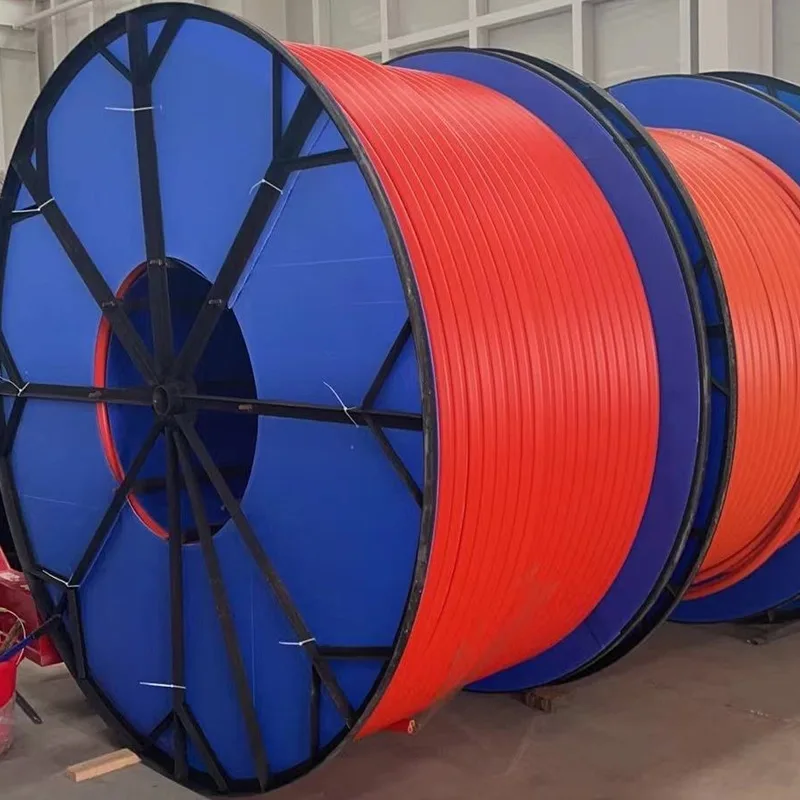

19-Way 7/3.5 mm HDPE Microduct Tube Bundle with 1.2 mm Sheath detail 1
19-Way 7/3.5 mm HDPE Microduct Tube Bundle with 1.2 mm Sheath detail 2
19-Way 7/3.5 mm HDPE Microduct Tube Bundle with 1.2 mm Sheath detail 3
19-Way 7/3.5 mm HDPE Microduct Tube Bundle with 1.2 mm Sheath detail 4
19-Way 7/3.5 mm HDPE Microduct Tube Bundle with 1.2 mm Sheath detail 5
19-Way 7/3.5 mm HDPE Microduct Tube Bundle with 1.2 mm Sheath detail 6
19-Way 7/3.5 mm HDPE Microduct Tube Bundle with 1.2 mm Sheath detail 7
19-Way 7/3.5 mm HDPE Microduct Tube Bundle with 1.2 mm Sheath detail 8
19-Way 7/3.5 mm HDPE Microduct Tube Bundle with 1.2 mm Sheath detail 9
19-Way 7/3.5 mm HDPE Microduct Tube Bundle with 1.2 mm Sheath detail 10
19-Way 7/3.5 mm HDPE Microduct Tube Bundle with 1.2 mm Sheath detail 11
19-Way 7/3.5 mm HDPE Microduct Tube Bundle with 1.2 mm Sheath detail 12

SELECTION GUIDE

Selecting a 19-way 7/3.5 mm microduct bundle

Use these checkpoints to prepare a product-specific enquiry and close the fit, test and documentation questions before ordering.

  1. Confirm way countMatch nineteen pathways to the planned fiber route and spare capacity.
  2. Check duct clearanceConfirm 7/3.5 mm dimensions and the air-blown cable requirement.
  3. Plan the bundle routeUse the 44.4 mm bundle OD and project bend limits for civil design.
  4. Request batch evidenceConfirm pressure, tensile, crush, impact, color, drum and quantity documents.

OEM & PROJECT CAPABILITY

Company capability for telecom supply

Oulu Automatic Equipment presents itself as a supplier of microduct connectors, HDPE microduct systems, cable blowing accessories and pneumatic fittings for telecom contractors, distributors and OEM partners.

Explore company capabilities

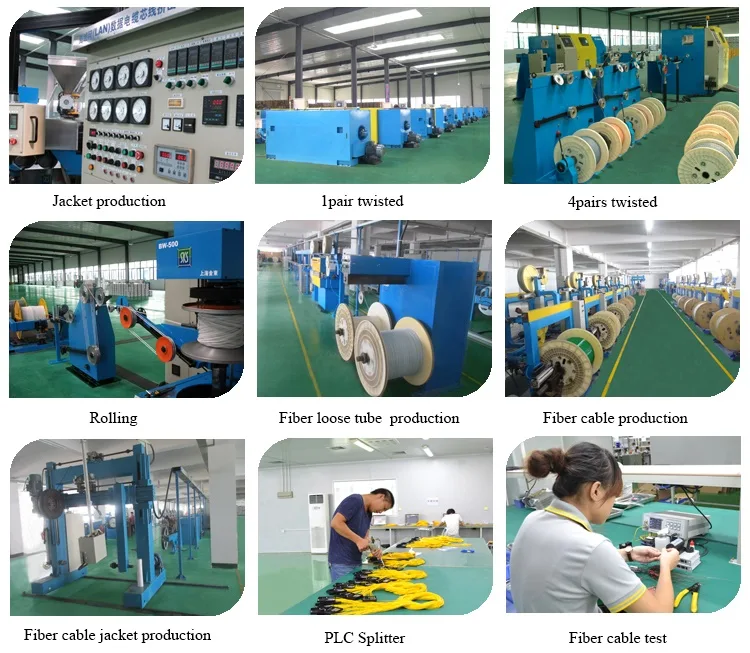

Quality inspection for Oulu microduct connector supply

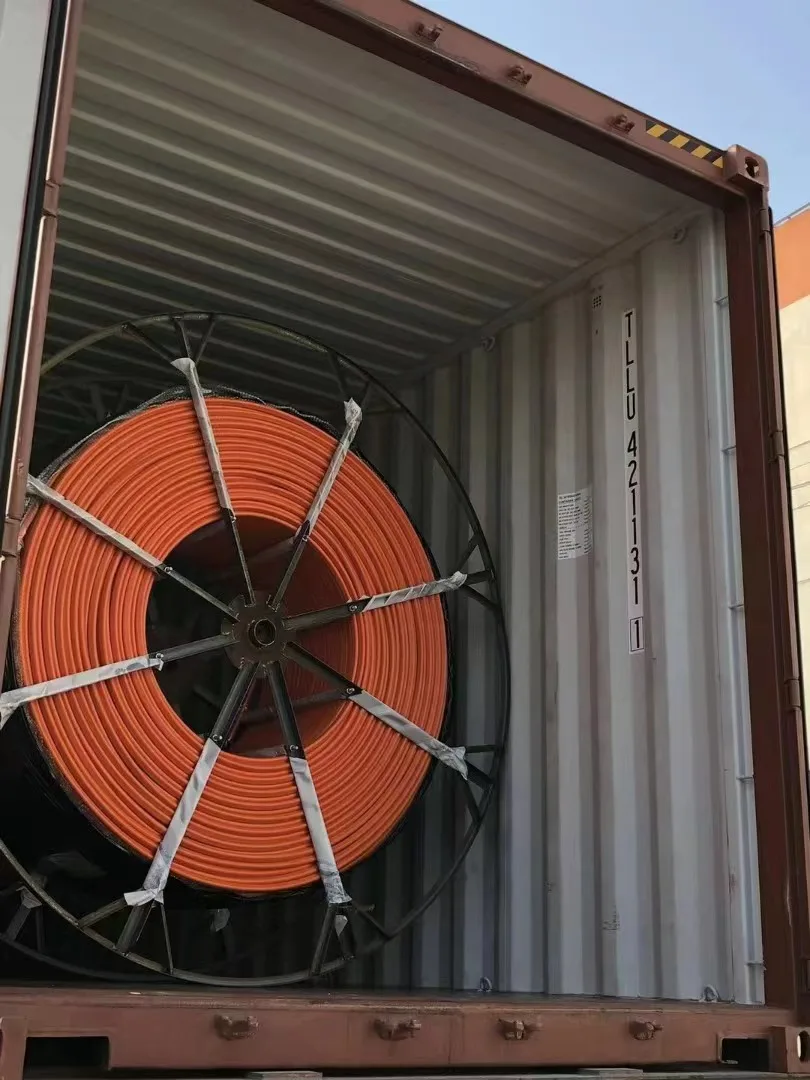

Warehouse packing for Oulu microduct connector orders

B2B SOURCING SUPPORT

B2B purchasing support

The supplier’s Service page describes support from product consultation and customized solutions through production, delivery and after-sales. Include these details in a product enquiry:

  • Match nineteen pathways to the planned fiber route and spare capacity.
  • Target quantity, model or size mix, sample needs and packing preference.
  • Drawings, route conditions, pressure or sealing tests and compliance documents.
  • Current MOQ, price, freight, sample timing and production timing to be confirmed in the quotation.

Company-level support and commercial terms should be reconfirmed for the selected product and order.

Share dimensions, route conditions and quantities for a product-specific quotation.Send product requirements

PROJECT SUPPORT

Plan the right microduct solution

Review the Usluga page for project context, then confirm exact fit, documents and commercial terms in the quotation.

Discuss your project

Često postavljana pitanja

Često postavljana pitanja

What is a 19-way 7/3.5 mm microduct bundle used for?

It provides nineteen HDPE pathways for FTTH and air-blown fiber installations.

What are the inner duct dimensions?

The source lists 7 mm outside diameter and 3.5 mm inside diameter.

What is the bundle outside diameter?

The published bundle outside diameter is 44.4 mm ±1.2 mm.

What tensile and crush values are stated?

The source states inner-duct tensile strength of at least 470 N and a bundle crush load of 2,500 N.

What storage and operating temperatures are listed?

Storage and operation are stated as -40 to +70 °C, with installation from -30 to +50 °C.

What should a 19-way bundle enquiry include?

Provide way count, OD/ID, route length, bend limits, sheath, drum packing, quantity and test documents.
