마이크로덕트 커넥터

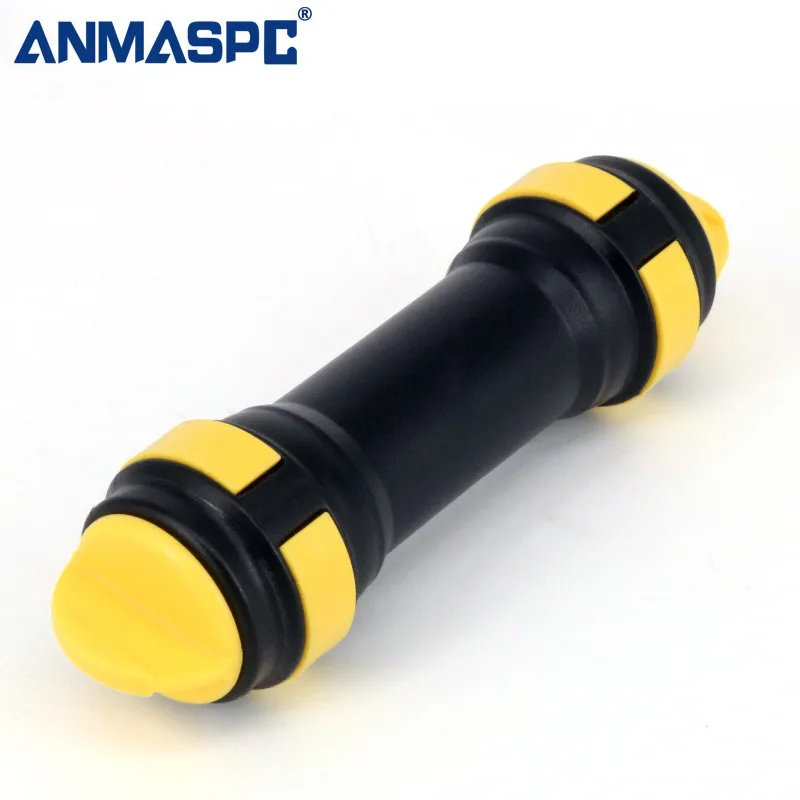

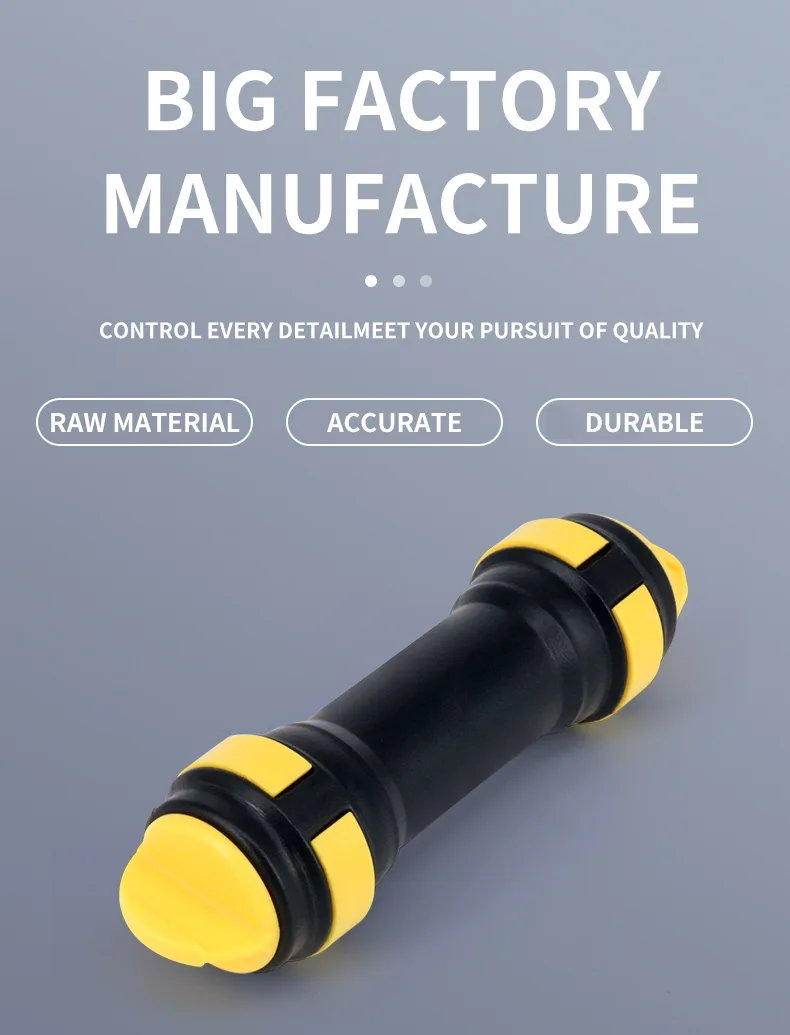

straight direct bury micro duct connector

Zhejiang Oulu Automatic Equipment Co., Ltd. Short Description: Description： The microduct straight connector were developed to connect microducts with each other.Our system enables an easy, fast connecti on And disconnecti on of the microduct. The straight microduct connector robust constructi on resistance to high pressure forces,allowing them to be used in direct buried (DB) applicati ons. Main features： ①Standard EN50411-2-8. ②High pressure resistance>25bar. ③High temperature resistance -40~65℃. ④Designed to connect thick-walled microducts in a direct buried environments. ⑤Permanent connecti on that cannot be unlocked aft er installati on Easy to use,robust,And high mechanical resistance. ⑥ Packaging: bag

카테고리마이크로덕트 커넥터

문의하기 제품 상세 정보

제품 상세 정보

간단한 설명:

Descriptionï¼

The microduct straight connector were developed to connect microducts with each other.Our system enables an easy, fast connecti on And disconnecti on of the microduct. The straight microduct connector robust constructi on resistance to high pressure forces,allowing them to be used in direct buried (DB) applicati ons.

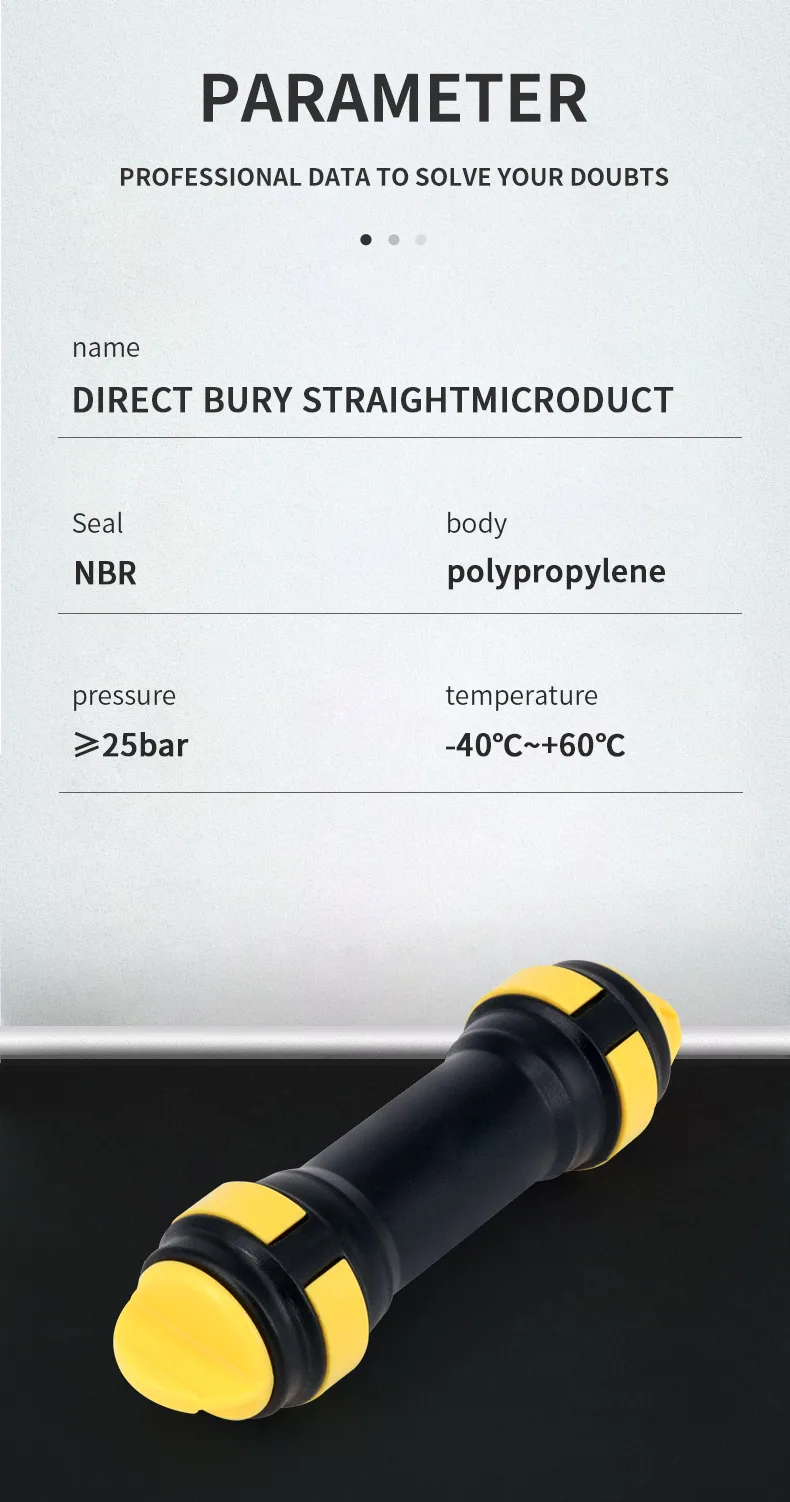

Main featuresï¼

â Standard EN50411-2-8.
â¡High pressure resistance>25bar.
â¢High temperature resistance -40~65â.
â£Designed to connect thick-walled microducts in a direct buried environments.

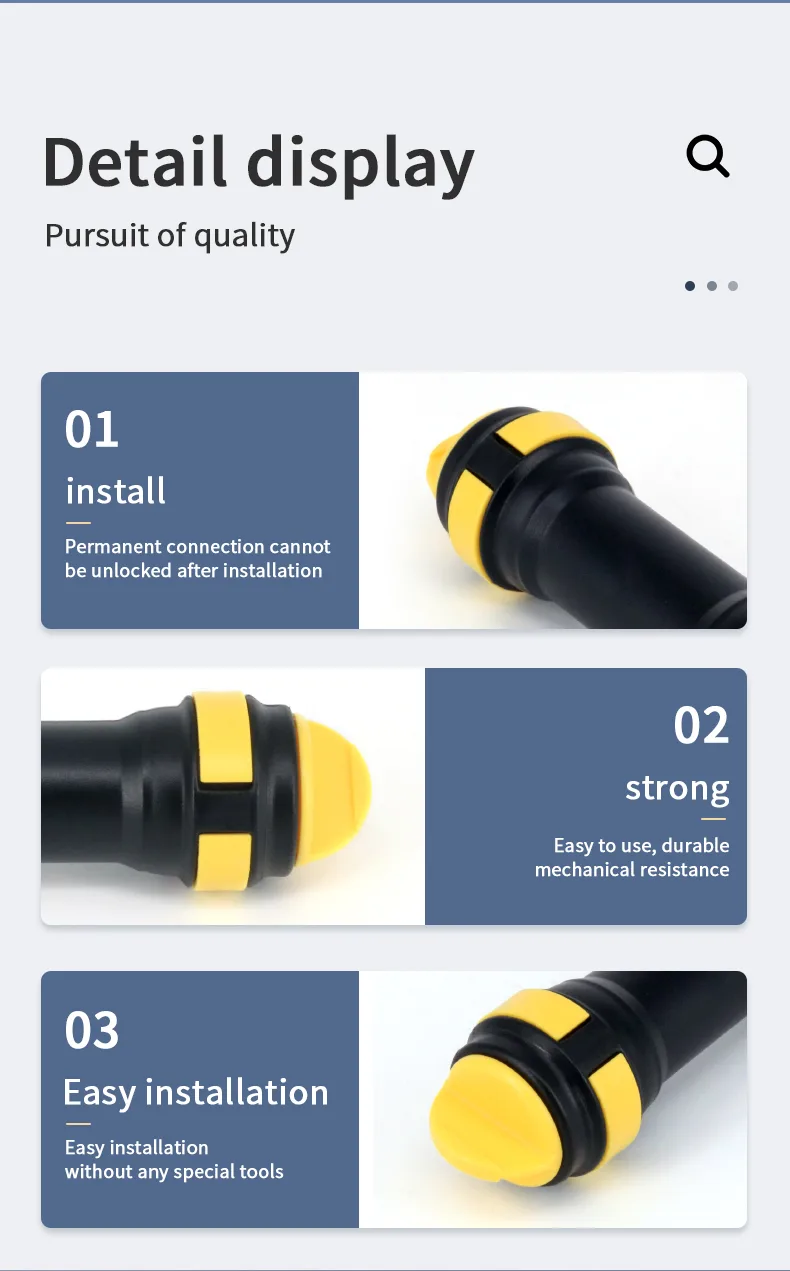

â¤Permanent connecti on that cannot be unlocked aft er installati on Easy to use,robust,And high mechanical resistance.
포장: 백

설명

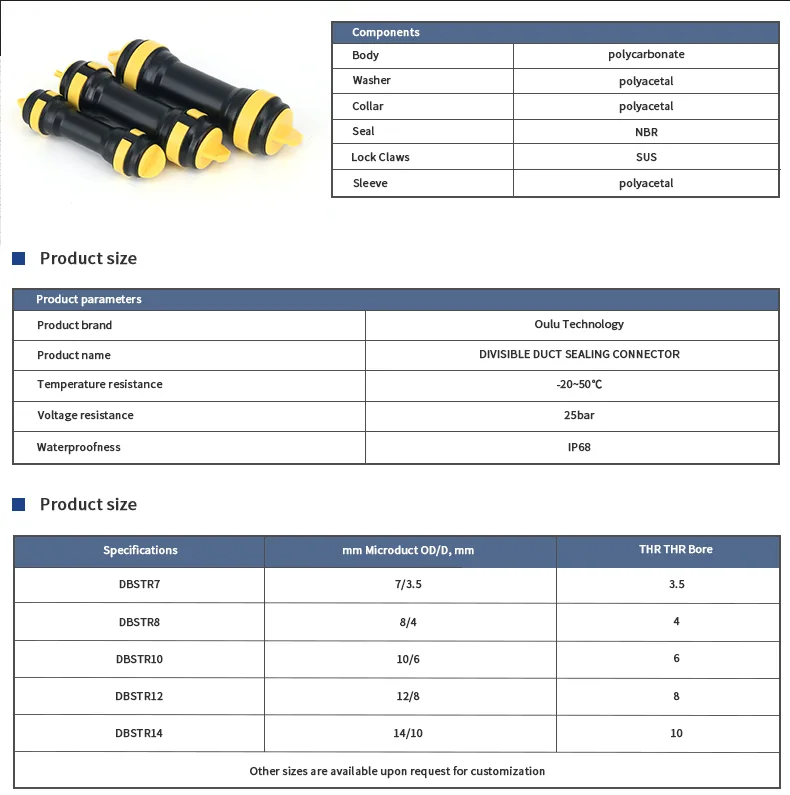

Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â		구성 요소
		본체		polycarbonate
		Washer		polyacetal
		Collar		polyacetal
		Seal		NBR
		Lock Claws		SS301/304
		Sleeve		polyacetal
피트 튜브
파이프 재질		고밀도 폴리에틸렌(HDPE), 폴리에틸렌(PE), 나일론, 폴리우레탄
파이프 외경		Φ3,Φ4,Φ5,Φ6,Φ7,Φ8,Φ10,Φ12,Φ16,Φ18,Φ20
기술 사양
유체 다루기		공기
조임		0.15~0.8MPa 누설 없음
인장 시험		400N
내압시험 압력		2.5MPa
작동 압력 범위		0~1.6MPa
주위 온도와 유체 온도		-40~60℃
설치 온도		-10℃/+50℃
권장 불어내기 온도		-15℃/+35℃
보호 등급		IP68
자외선 차단 등급		F1
삽입력		50N 최대(5kg)
수명		25년
표준		EN 50411-2-8

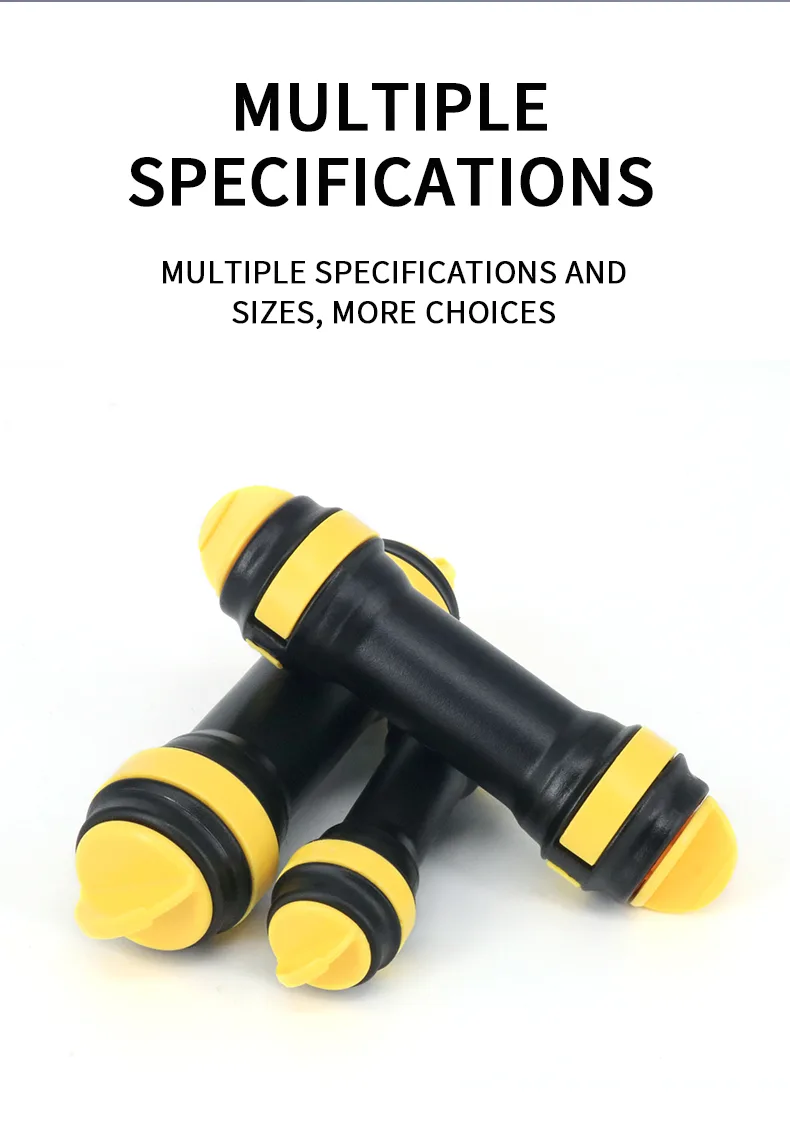

사양 및 치수
ANMASPC 코드	Duct OD(mm)		PCS/bag		PIPE size
DB07/3.5	Â Î¦7/3.5		10.0		Î¦7
DB08/3.5	Â Î¦8/3.5		10.0		Î¦8
DB10/6	Î¦10/6		10.0		Î¦10
DB12/8	Î¦12/8		10.0		Î¦12
DB14/10	Î¦14/10		10.0		Î¦14
