마이크로덕트 커넥터
HDPE 직선 커넥터
절강 오울루 자동화 장비 유한회사 요약 설명: 설명: 우수한 성능을 보장하는 마이크로덕트 직선 커넥터입니다. 투명한 본체를 통해 마이크로덕트의 내부 위치를 확인할 수 있습니다. 변조 방지 기능이 있는 안전 클립이 사전 설치되어 있습니다. 테스트 완료 및 EN 50411-2-8 준수. 주요 특징: ① 안전 클립 포함 ② 푸시핏 기술 ③ 작동 압력: 최대 25바
카테고리마이크로덕트 커넥터
MICRODUCT CONNECTORS

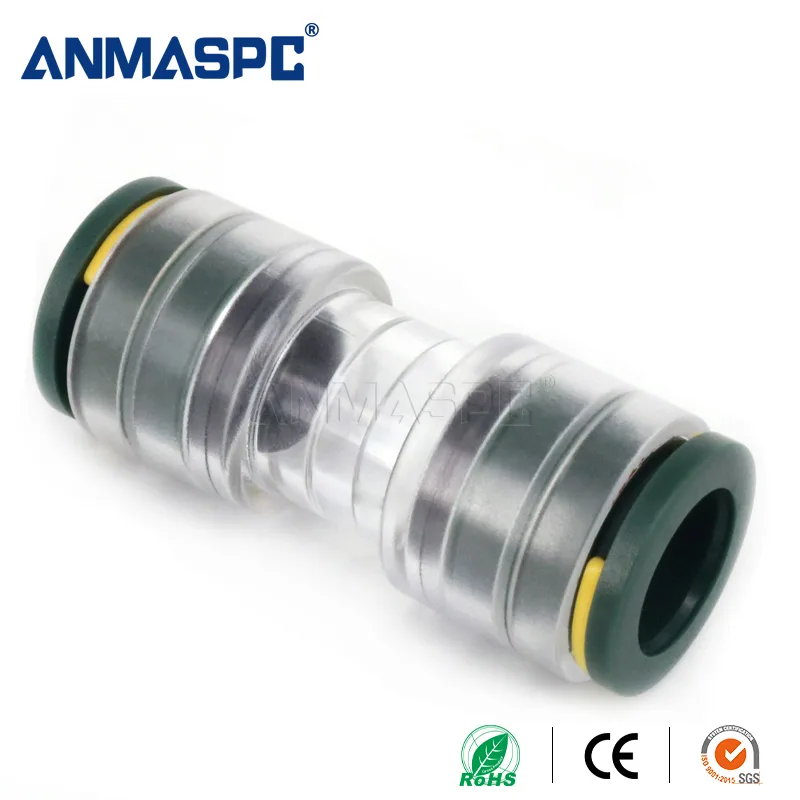

Microduct HDPE straight connectors for air-blown fiber routes
These microduct HDPE straight connectors are presented for joining compatible tubes in air-blown fiber and telecom routes.
The source lists a transparent body, push-fit technology, preinstalled safety clips and a POM cartridge. FPU combinations cover tube outside diameters from 3 to 20 mm; confirm the measured OD/ID and project test conditions before ordering.
TECHNICAL DETAILS
Published product facts
| 아이템 | Published information |
|---|---|
| Product type | Straight push-fit microduct connector |
| Published tube materials | HDPE, PE, nylon and polyurethane |
| Published size coverage | FPU codes for approximately 3-20 mm tube outside diameters |
| Supplier-stated performance | 0-1.6 MPa operating pressure, 2.5 MPa proof pressure and 400 N pull test |
| Blowing / protection statements | Recommended blowing temperature -15 to 35 °C; IP68 and EN 50411-2-8 stated |
PRODUCT DETAIL IMAGES

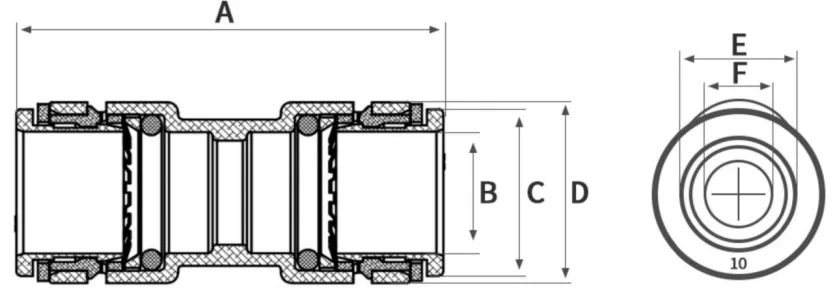

Product Detail
The original product detail images are retained for visual reference. Confirm the quoted model, dimensions and test requirements before ordering.
SELECTION GUIDE
Specifying a straight connector for air-blown fiber
Use these checkpoints to prepare a product-specific enquiry and close the fit, test and documentation questions before ordering.
-
Measure the tubesSend OD/ID, wall condition and material for both microducts.
-
Match the article codeUse the published FPU table to identify the candidate size and request its drawing.
-
Describe the blowing planState blowing temperature, pressure, cable and leak-test requirements.
-
Close the procurement pointsConfirm sample, quantity, packing, current documents and delivery terms.
OEM & PROJECT CAPABILITY
Company capability for telecom supply
Oulu Automatic Equipment presents itself as a supplier of microduct connectors, HDPE microduct systems, cable blowing accessories and pneumatic fittings for telecom contractors, distributors and OEM partners.
B2B SOURCING SUPPORT
B2B purchasing support
The supplier’s Service page describes support from product consultation and customized solutions through production, delivery and after-sales. Include these details in a product enquiry:
- Send OD/ID, wall condition and material for both microducts.
- Target quantity, model or size mix, sample needs and packing preference.
- Drawings, route conditions, pressure or sealing tests and compliance documents.
- Current MOQ, price, freight, sample timing and production timing to be confirmed in the quotation.
Company-level support and commercial terms should be reconfirmed for the selected product and order.
Share dimensions, route conditions and quantities for a product-specific quotation.Send product requirements
자주 묻는 질문
자주 묻는 질문
What are microduct HDPE straight connectors used for?
They join compatible microduct sections in a straight air-blown fiber or telecom route.
How do I select an FPU connector size?
Provide the measured outside and inside diameter of both tubes and match them to the published FPU row.
Can a connector affect fiber blowing performance?
Joint alignment, tube fit and sealing matter to the route. Confirm the correct FPU code and installation procedure before blowing.
What pressure data is published?
The supplier states 0-1.6 MPa operating pressure, 2.5 MPa proof pressure and air tightness from 0.15 to 0.8 MPa.
What blowing temperature is stated?
The source recommends -15 to 35 °C for blowing. Confirm that range against the project method.
What should accompany a connector enquiry?
Send tube measurements and materials, blowing conditions, pressure and pull tests, quantity, packing and required documents.
