Microduct Endcap connectors (end coupler,end stop)

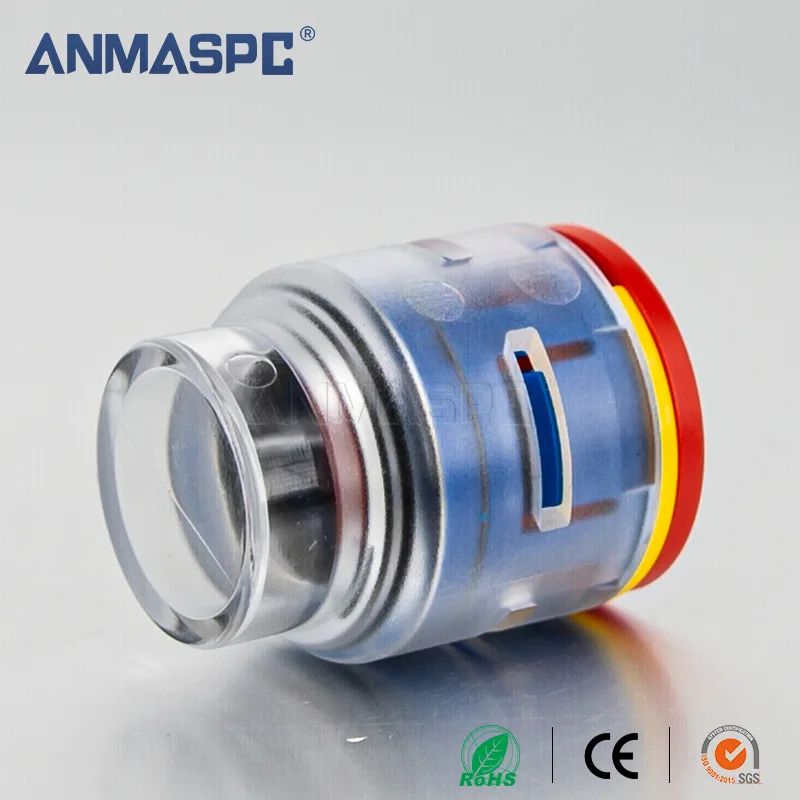

Zhejiang Oulu Automatic Equipment Co., Ltd. Short Description:   ● Resistant to high pressures for blowing micro cables through guide tubes ● Resistant to corrosion and most chemicals ● Water and air tight ● Suitable for use in a wide range of working temperatures End caps are airtight caps used to keep debris out of the end of the micro duct when pulling duct through existing conduit and plowed holes, sealing the end of the conduit temporarily. The end cap is a clear cap that installs much like the couplers providing an airtight seal.

카테고리마이크로덕트 커넥터

제품 상세 정보

간단한 설명:

● Resistant to high pressures for blowing micro cables through guide tubes

● Resistant to corrosion and most chemicals

● Water and air tight

● Suitable for use in a wide range of working temperatures

End caps are airtight caps used to keep debris out of the end of the micro duct when pulling duct through existing conduit and plowed holes, sealing the end of the conduit temporarily. The end cap is a clear cap that installs much like the couplers providing an airtight seal.

Discription

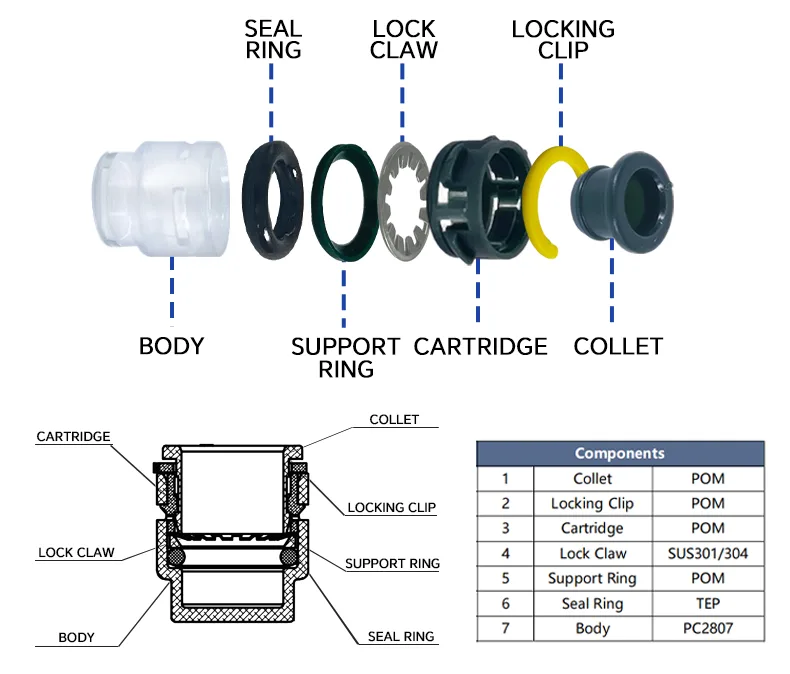

                       Microduct Endcap connectors (end coupler,end stop) detail image 1               Microduct Endcap connectors (end coupler,end stop) detail image 2 구성품
1 콜렛 POM
2 잠금 클립 POM
3 카트리지 아연 합금
4 잠금 클로 SUS301/304
5 서포트 링 POM
6 인장 반지 TEP
7 본체 PC2807
피트 튜브
파이프 재질 고밀도 폴리에틸렌(HDPE), 폴리에틸렌(PE), 나일론, 폴리우레탄
파이프 외경 Φ3,Φ4,Φ5,Φ6,Φ7,Φ8,Φ10,Φ12,Φ16,Φ18,Φ20
기술 사양
유체 다루기 공기
조임 0.15~0.8MPa 누설 없음
인장 시험 400N
내압시험 압력 2.5MPa
작동 압력 범위 0~1.6MPa
주위 온도와 유체 온도 -40~60℃
설치 온도 -10℃/+50℃
권장 불어내기 온도 -15℃/+35℃
보호 등급 IP68
자외선 차단 등급 F1
삽입력 50N 최대(5kg)
수명 25년
표준 EN 50411-2-8

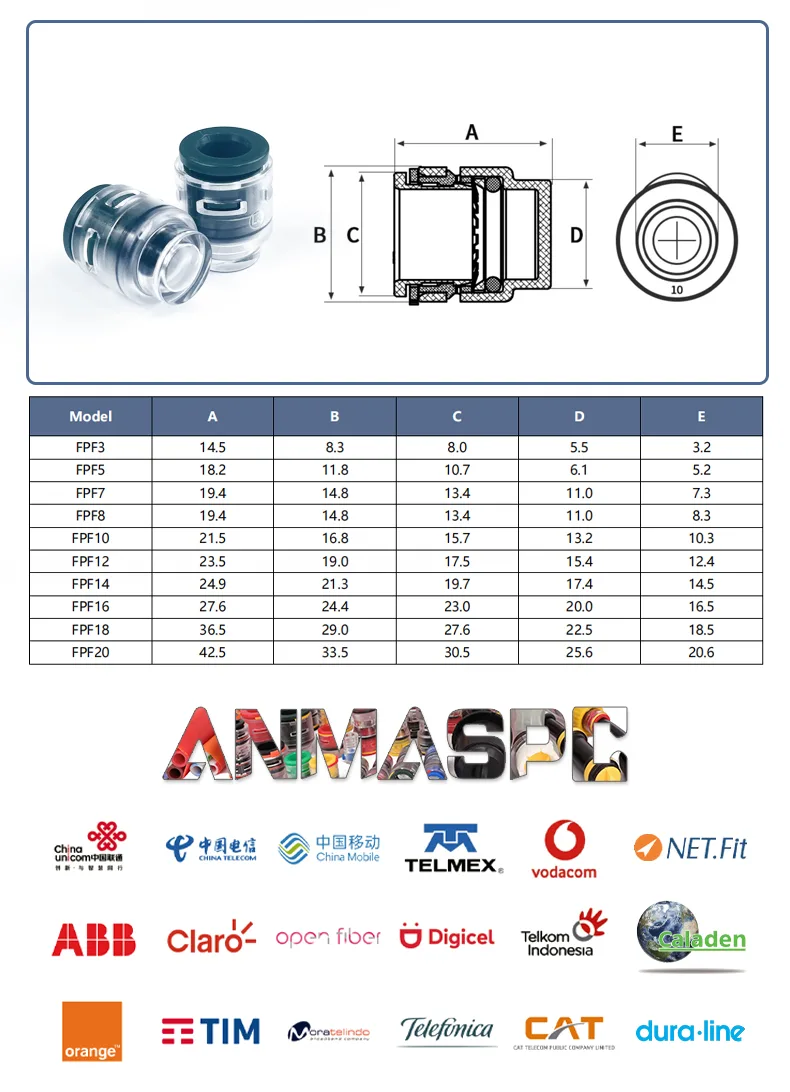

사양 및 치수
ANMASPC 코드 외경/내경
FPF3 3
FPF4 4
FPF5 5
FPF6 6
FPF7 7
FPF8 8
FPF10 10
FPF12 12
FPF14 14
FPF16 16
FPF18 18
FPF20 20
