Full-size microduct endcap range for telecom procurement

This microduct endcap family is presented for terminating open-ended telecom tubes and helping limit air leakage, water and material ingress.

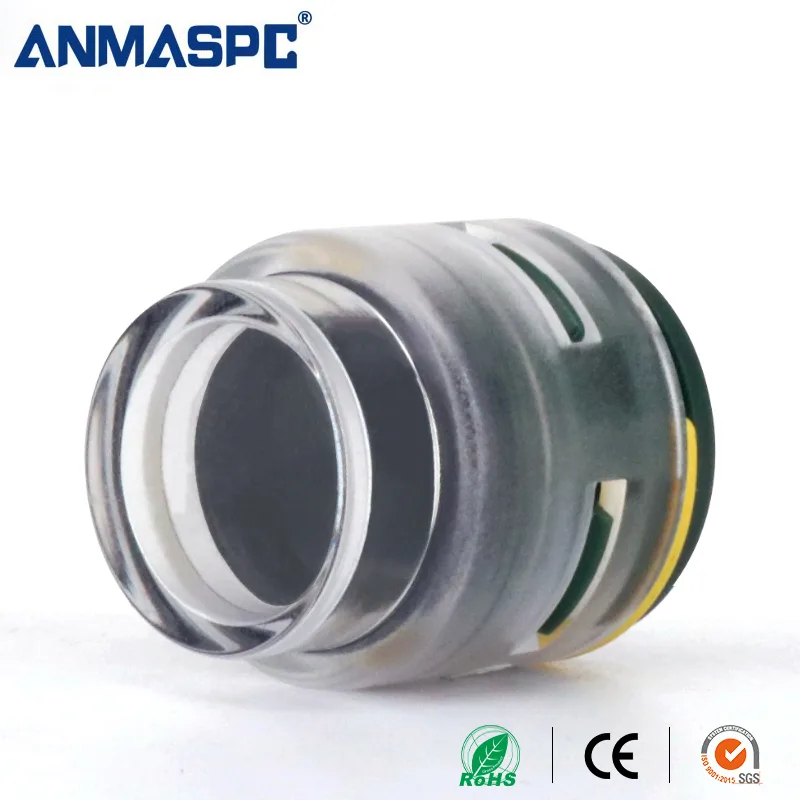

Supplier data lists transparent push-fit bodies, preassembled safety clips, a maximum working pressure of 25 bar and FPF sizes from 3–20 mm outside diameter.

Key details

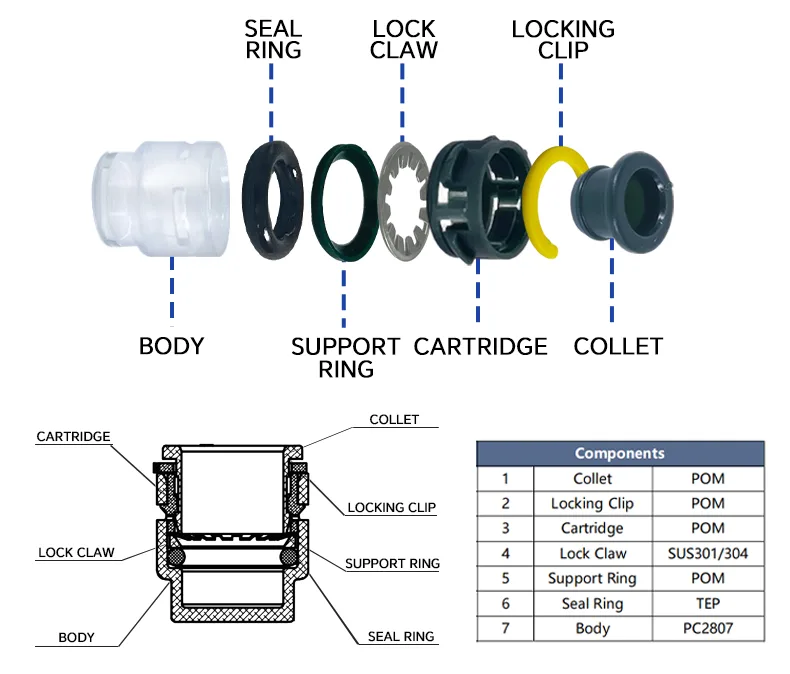

							Komponente
							1	Koleta		POM
							2	Kvačica za zaključavanje		POM
							3	Patron		Legura cinka
							4	Kandža-zaključavanje		SUS301/304
							5	Prsten za podršku		POM
							6	Prsten zapečaćen		TEP
							7	Tijelo		PC2807
Fit cijev
Materijal cijevi						HDPE、PE、Nylon、Polyurethane
Vanjski promjer cijevi						Φ3,Φ4,Φ5,Φ6,Φ7,Φ8,Φ10,Φ12,Φ16,Φ18,Φ20
Technical Parameter
Rad sa tečnostima						Zrak
Zategnutost						0.15~0.8 MPa bez curenja
Test vučenja						400N
Dokazni pritisak						2,5 MPa
Raspon radnog pritiska						0~1,6 MPa
Ambijentalna temperatura i temperatura tečnosti						-40~60℃
Radna temperatura						-10℃/+50℃
Preporučena temperatura duvanja						-15℃/+35℃
Stepen zaštite						IP68
UV-otporni razred						F1
Sila umetanja						50N max (5kg)
Trajanje života:						25 godina
Standardi:						EN 50411-2-8

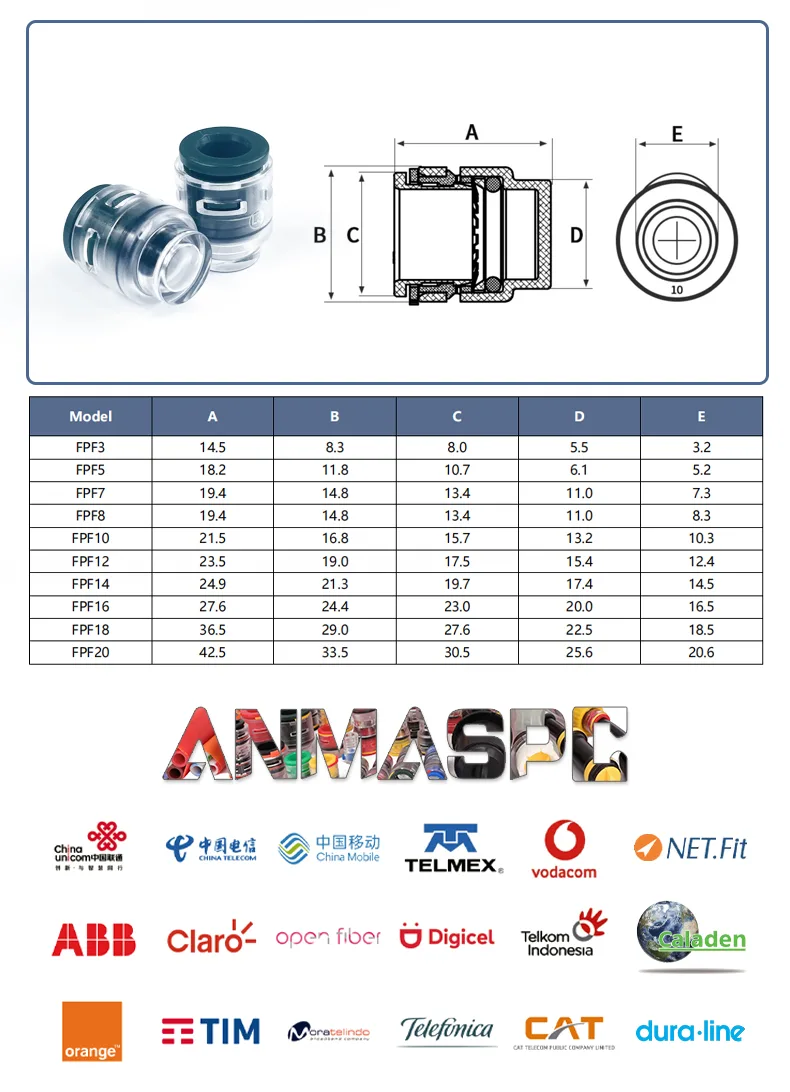

Specifikacije i dimenzije
ANMASPC kod						Vanjski promjer / unutrašnji promjer
FPF3						3
FPF4						4
FPF5						5
FPF6						6
FPF7						7
FPF8						8
FPF10						10
FPF12						12
FPF14						14
FPF16						16
FPF18						18
FPF20						20

Building a multi-size microduct endcap order

Use these checkpoints to prepare a product-specific enquiry and avoid selecting by a general trade name alone.

1. List every tube size: Provide measured outside diameters and required quantities by FPF code rather than asking for an unspecified mixed range.
2. Separate route conditions: Identify any sizes used in different chambers, routes or pressure conditions.

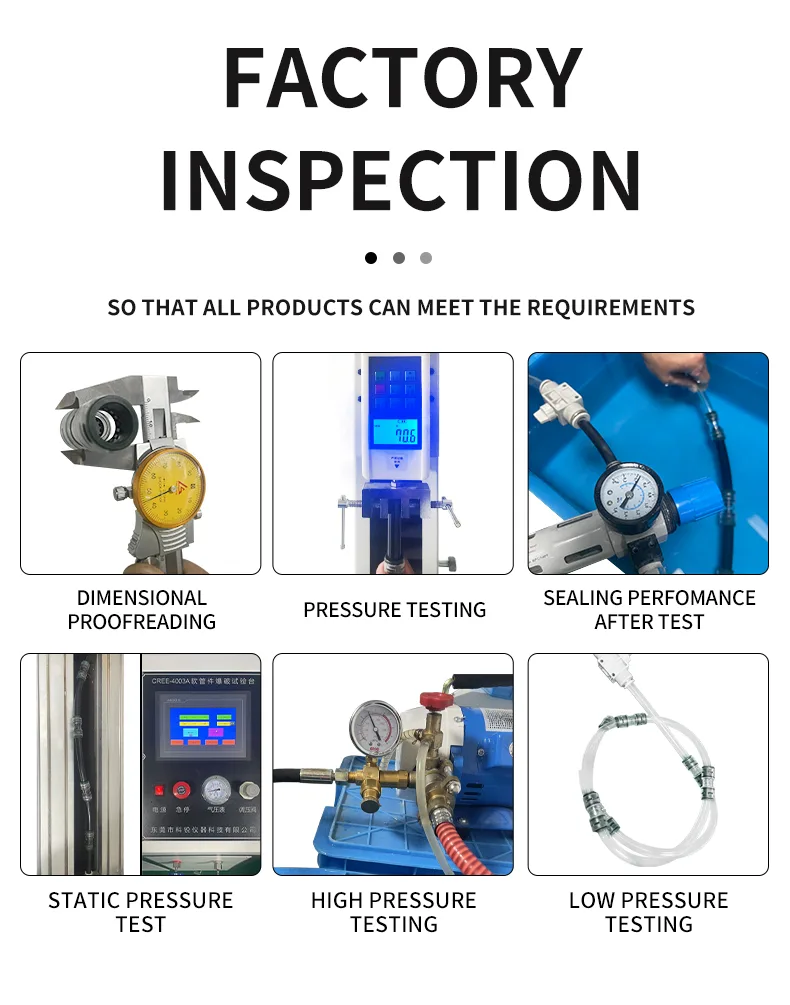

3. Confirm fit and test data: Request dimensional drawings and applicable sealing or pressure information for the selected versions.
4. Confirm commercial terms: Ask for current MOQ, mixed-size packing, sample availability, lead time and export documents in the quotation.

OEM & PROJECT CAPABILITY

Company capability for telecom supply

Oulu Automatic Equipment presents itself as a supplier of microduct connectors, HDPE microduct systems, cable blowing accessories and pneumatic fittings for telecom contractors, distributors and OEM partners.

Explore company capabilities

B2B SOURCING SUPPORT

B2B purchasing support

The supplier’s Service page describes support from product consultation and customized solutions through production, delivery and after-sales. For a product-specific enquiry, include:

• Provide measured outside diameters and required quantities by FPF code rather than asking for an unspecified mixed range.
• Target quantity by size or model, sample needs, mixed specifications and packing preference.
• Project drawings, pressure or sealing requirements, and required compliance or export documents.
• Current MOQ, payment, freight, sample timing and production timing to be confirmed in the quotation.

Company-level service statements and commercial terms should be reconfirmed for the selected product and order.

Share dimensions, route conditions and quantities for a product-specific quotation.
Send product requirements

PRODUCT DETAIL IMAGES

Product Detail

Često postavljana pitanja

What is a microduct endcap used for?

It closes an open-ended telecom tube and is described as helping limit air leakage and water or material ingress.

What are the standard sizes of microducts?

Network sizes vary. This endcap family publishes FPF3–FPF20 versions for 3–20 mm outside diameter.

Can I order multiple microduct endcap sizes together?

Mixed-size supply may be discussed, but current MOQ, packing and commercial terms should be confirmed in the quotation.

How do I select an FPF endcap code?

Match the measured tube outside diameter to the published FPF size and request the dimensional drawing for final confirmation.

What pressure can the transparent endcap handle?

The supplier publishes a maximum working pressure of 25 bar. Confirm the test method and actual project condition before use.

What details are needed for a wholesale microduct endcap enquiry?

Provide quantities by size, tube material, application, sealing requirement, packing preference, destination and document needs.
