Mikrodukt konektori

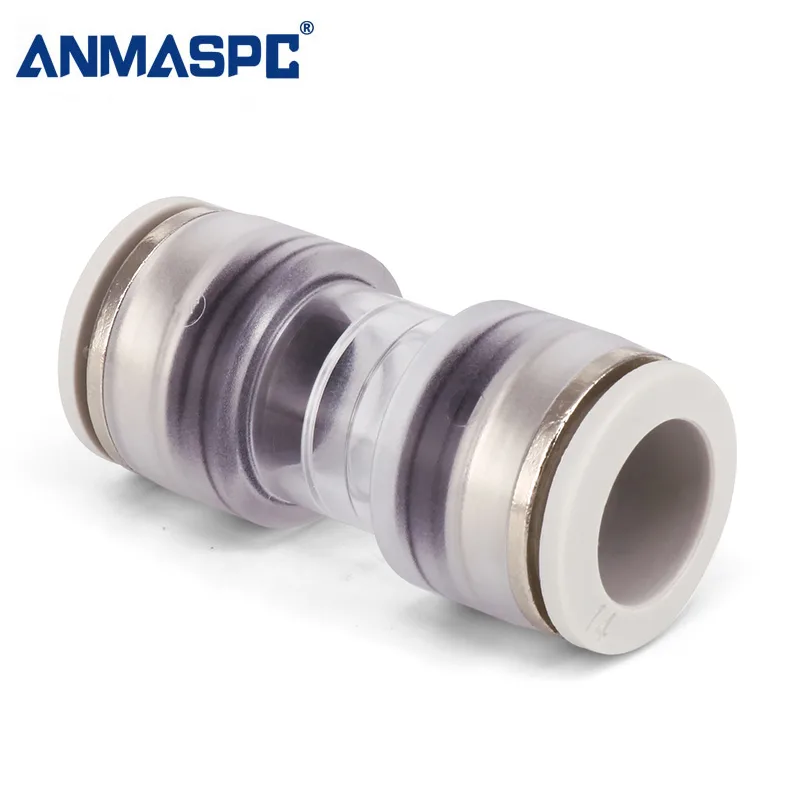

MicroDuct ravni konektor

Zhejiang Oulu Automatic Equipment Co., Ltd. Kratki opis: OPIS: Mikro-kanalni ravni konektori, koji garantuju dobru izvedbu. Prozirno tijelo omogućava provjeru položaja mikro-kanala iznutra. Sigurnosni klipovi protiv neovlaštenog otvaranja su predinstalirani. Testirano i u skladu sa EN 50411-2-8. GLAVNE KARAKTERISTIKE: ① Uključeni sigurnosni klipovi ② Push-fit tehnologija ③ Radni pritisak: max. 25 bara

KategorijaMikrodukt konektori

Pošalji upit Detalji o proizvodu

MICRODUCT CONNECTORS

Microduct straight connector for HDPE pipe and fiber routes

This microduct straight connector is presented for joining compatible HDPE microducts in fiber-optic routes, including the 12/10 mm use signaled by the product title.

The supplier describes a transparent body, pre-installed tamper-evident safety clips, push-fit technology and a maximum working pressure of 25 bar. Confirm the exact FPU code and dimensions before ordering.

TECHNICAL DETAILS

Published product facts

Stavka	Published information
Product type	Straight push-fit microduct connector
Named application	12/10 mm HDPE pipe product title; exact code requires confirmation
Connection	Push-fit with pre-installed tamper-evident safety clips
Visual check	Transparent body allows tube-position verification
Published maximum working pressure	25 bar

PRODUCT DETAIL IMAGES

Product Detail

The original product detail images are retained below for visual reference. Confirm the quoted model and dimensions before ordering.

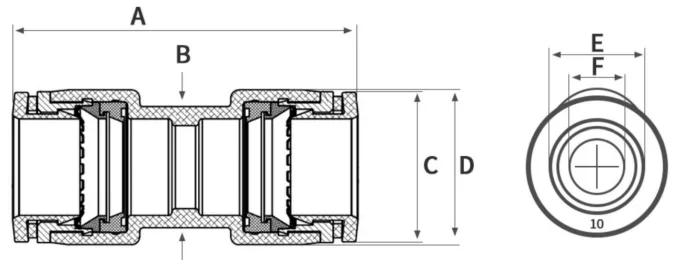

MicroDuct ravni konektor detaljna slika 1

MicroDuct ravni konektor detalj slike 10

MicroDuct ravni konektor detalj slike 11

MicroDuct ravni konektor detalj slike 12

SELECTION GUIDE

Checking a 12/10 mm HDPE connector fit

Use these checkpoints to prepare a product-specific enquiry and close the fit, test and documentation questions before ordering.

Measure the pipeSend the actual outside and inside diameter; do not rely only on a nominal 12/10 mm label.
Select the articleRequest the matching FPU code and dimensional drawing for the measured tube pair.
Confirm the routeState cable-blowing, underground or other installation conditions and the pressure test.
Confirm the orderRequest quantity, sample, packing, standard evidence and current delivery details.

OEM & PROJECT CAPABILITY

Company capability for telecom supply

Oulu Automatic Equipment presents itself as a supplier of microduct connectors, HDPE microduct systems, cable blowing accessories and pneumatic fittings for telecom contractors, distributors and OEM partners.

Explore company capabilities

Quality inspection for Oulu microduct connector supply

Warehouse packing for Oulu microduct connector orders

B2B SOURCING SUPPORT

B2B purchasing support

The supplier’s Service page describes support from product consultation and customized solutions through production, delivery and after-sales. Include these details in a product enquiry:

Send the actual outside and inside diameter; do not rely only on a nominal 12/10 mm label.
Target quantity, model or size mix, sample needs and packing preference.
Drawings, route conditions, pressure or sealing tests and compliance documents.
Current MOQ, price, freight, sample timing and production timing to be confirmed in the quotation.

Company-level support and commercial terms should be reconfirmed for the selected product and order.

Share dimensions, route conditions and quantities for a product-specific quotation.Send product requirements

Često postavljana pitanja

What is a 12/10 mm microduct connector?

It is a straight connector associated with a 12/10 mm HDPE pipe application. Confirm the actual tube dimensions and matching FPU code before ordering.

How do I choose a microduct straight connector?

Provide the outside and inside diameter of both tubes, material, route condition and pressure or cable-blowing requirement.

How is this push-fit optic connector installed?

The supplier describes push-fit technology with safety clips. Confirm tube preparation, insertion depth and leak-test steps for the selected code.

Why is the connector body transparent?

The transparent body is intended to help verify microduct position inside the joint during installation or inspection.

What pressure rating is published?

The supplier states a maximum working pressure of 25 bar. Confirm the project operating, proof and leak-test conditions.

Does the connector have a current certificate?

The source states EN 50411-2-8 for the product family, but current model-specific evidence should be requested if required.
