4ways HDPE mikrokanalna cijevna snop galerijska slika 1

HDPE mikrokanali

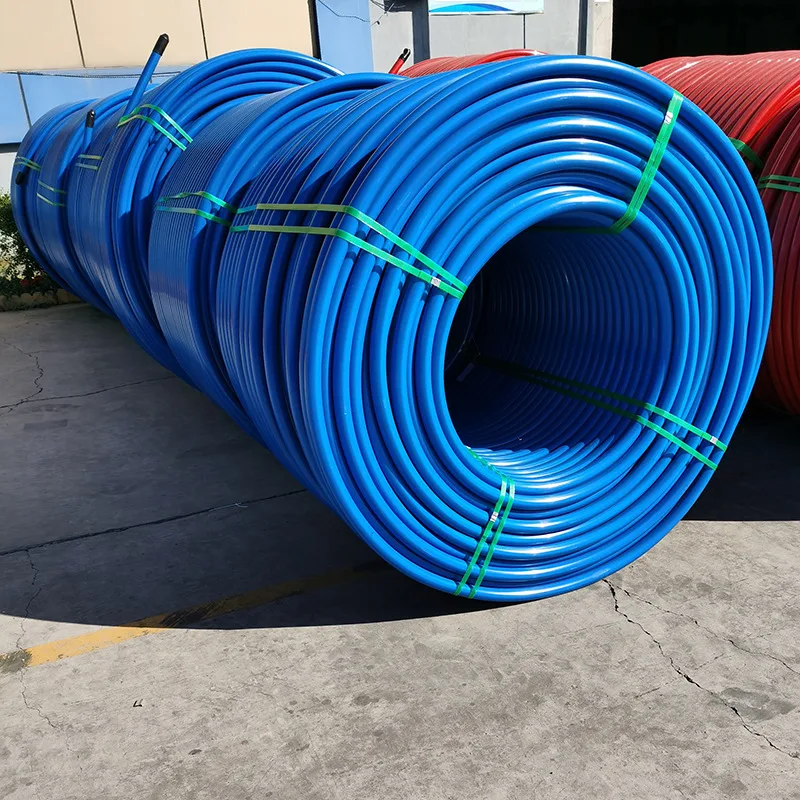

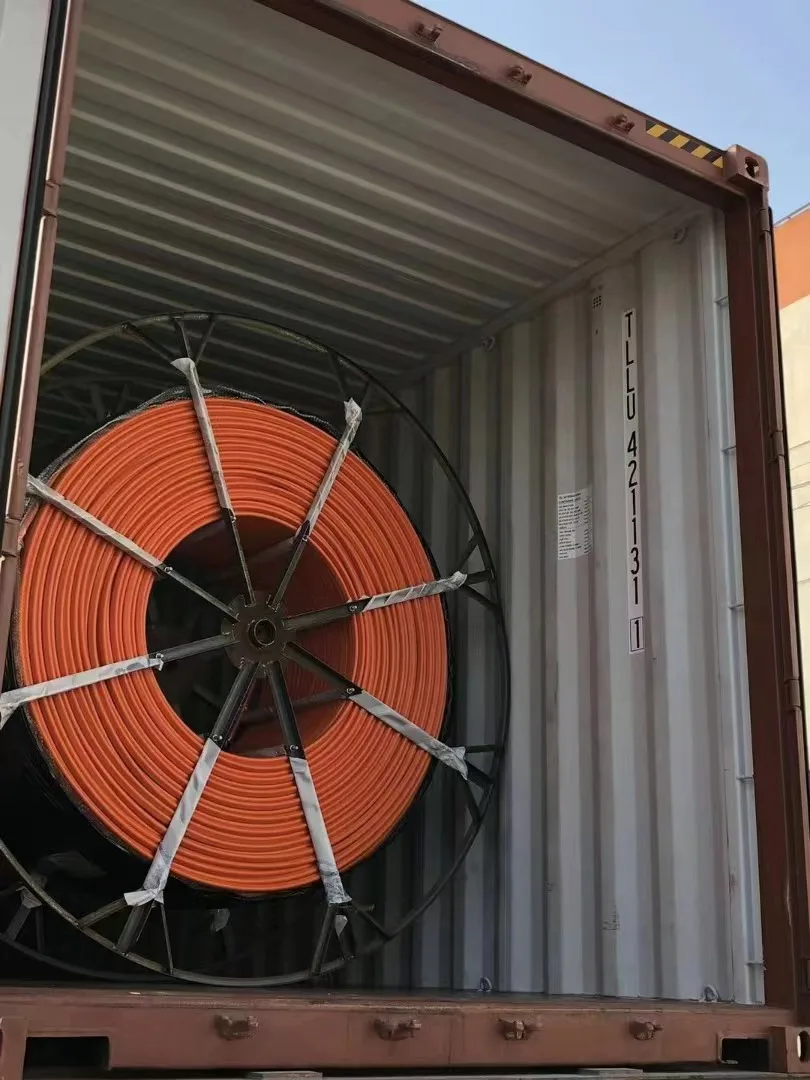

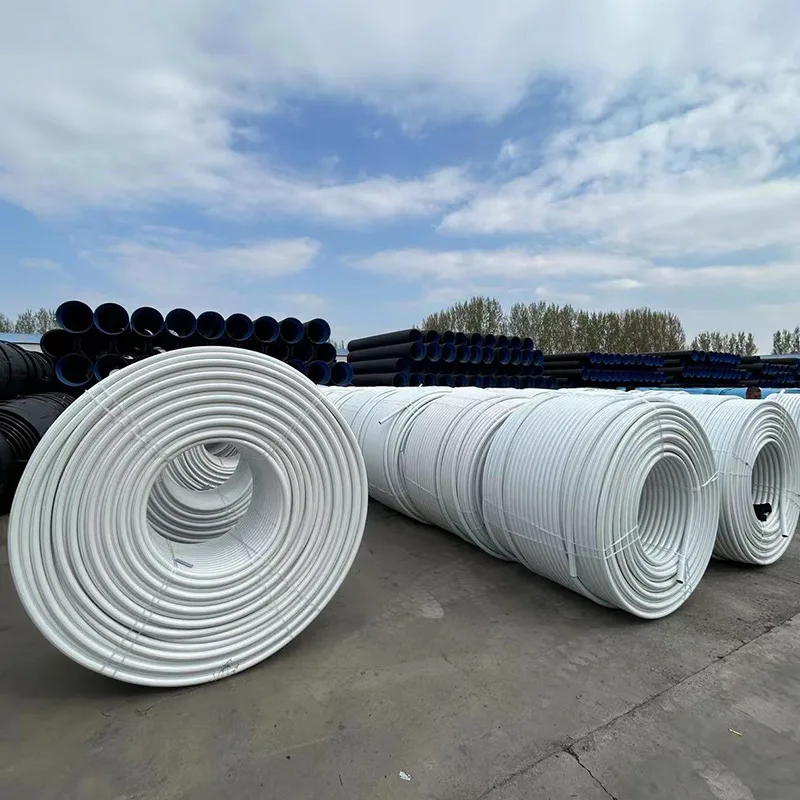

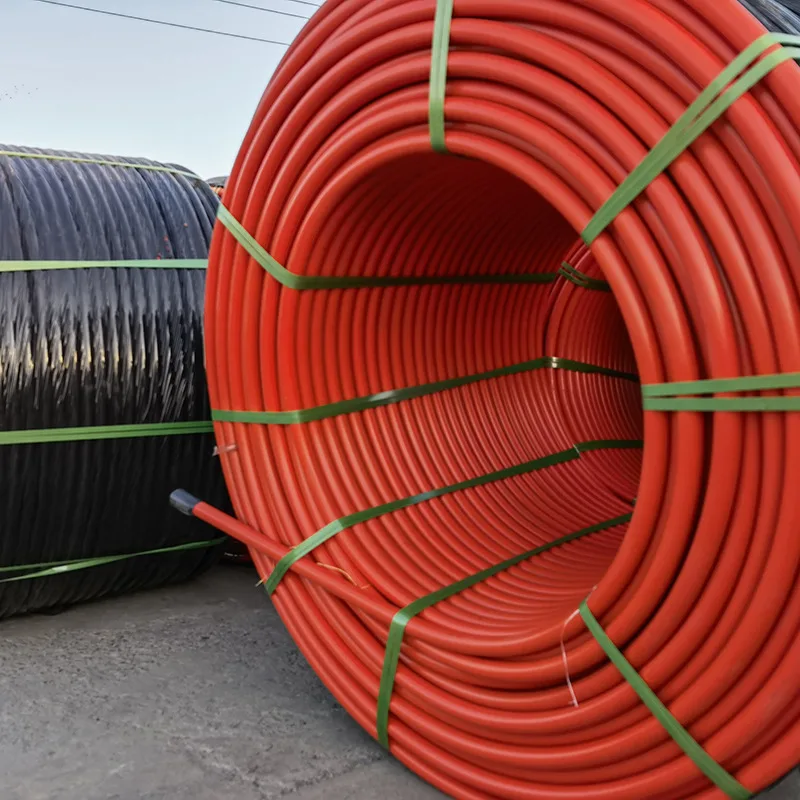

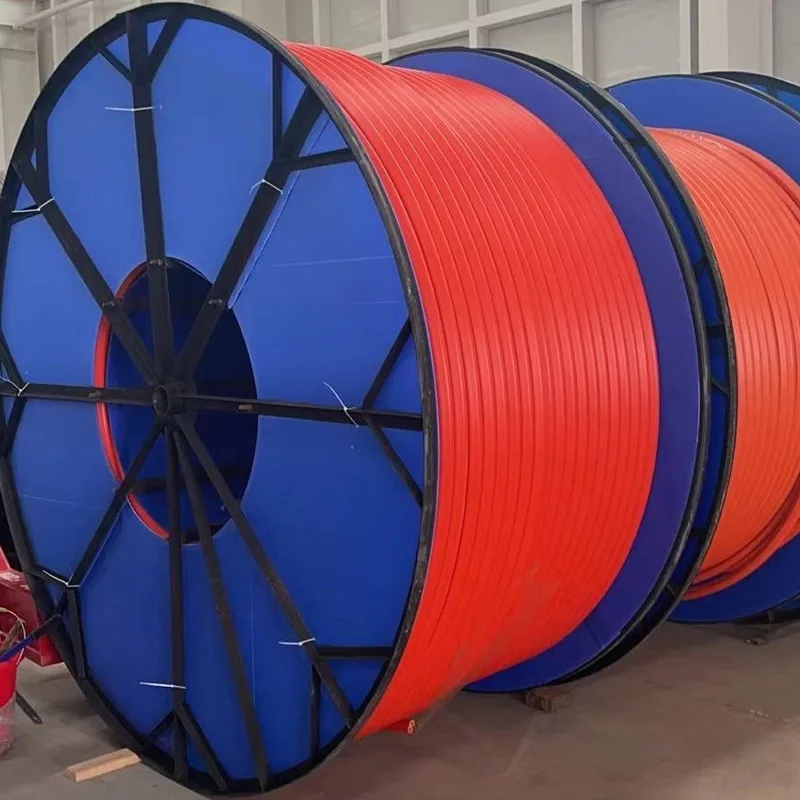

4ways HDPE mikrokanalni cjevni snop

Zhejiang Oulu Automatic Equipment Co., Ltd. Kratki opis: Broj modela: 4ways DB Tube Bundle Tip: Micro Duct & Tube Bundle Mjesto porijekla: Wenzhou, Kina Naziv marke: ANMASPC Otporno na starenje i hemijsku koroziju. HDPE paket cijevi je praktičan u izgradnji, štedi vrijeme i troškove projekta. Vodootporan i otporan na vlagu, telekomunikacioni kanal sprječava oštećenja od glodara.     FOB cijena: US $0.5 - 9,999 / komad Minimalna količina narudžbe: 100 komada Mogućnost isporuke: 10000 komada mjesečno

KategorijaHDPE mikrokanali
Pošalji upit Detalji o proizvodu

MICRODUCT CONNECTORS

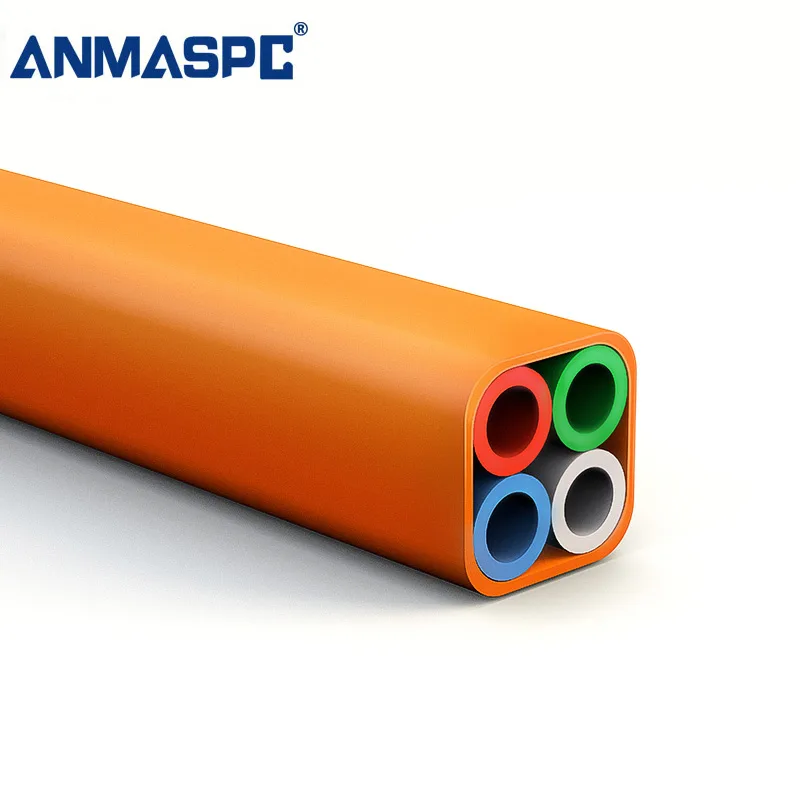

4-way HDPE microduct tube bundle for fiber cable blowing

This 4-way HDPE microduct tube bundle is presented for fiber-optic cable blowing in telecom underground routes.

The captured source states 7.0 mm inner-duct OD, 1.2 mm wall, 16.4 mm × 16.4 mm bundle profile, 1,600 N bundle tensile strength, 2,000 N crush load and a 360 mm minimum bend radius. These are supplier-stated values; confirm the project drawing and batch tests.

TECHNICAL DETAILS

Published product facts

Physical and Mechanical Properties – Inner Micro duct
1
Vizuelni izgled
Vizuelni pregled
Unutrašnja površina rebrasta, a vanjska glatka, bez mjehurića, uvlačenja, ljuštenja, ogrebotina i hrapavosti.
2
Vanjski promjer
ANMASPC
7.0mm ± 0.1mm
3
Debljina zida
 ANMASPC
1.20mm ± 0.10mm
4
Slobodan unutrašnji promjer
Duhanje čelične kugle
Čelična kuglica promjera 3,0 mm može slobodno proći kroz kanal.
5
Ovalnost
 ANMASPC
≤ 5%
6
Pritiskanje
5 minuta @16 bar svakom kanalu
Nema oštećenja i curenja
7
Perverzija
IEC 60794-1-2 Metoda E10
≤ 70mm
8
Čvrstoća na vuču
Stopa proširenja:
100 mm/min
≥ 470N
9
Smrskaj
Dužina uzorka: 250 mm
Opterećenje: 1650N
Trajanje maksimalnog opterećenja: 1 min
Vrijeme oporavka: 1 sat
Nema preostale deformacije unutrašnjeg i vanjskog prečnika veće od 15%; mora proći test tolerancije unutrašnjeg prečnika.
10
Uticaj
IEC 60794-1-2 Metoda E4
1.0 J udar, vrijeme oporavka 1 sat
Nema preostale deformacije unutrašnjeg i vanjskog prečnika veće od 15%; mora proći test tolerancije unutrašnjeg prečnika.
11
Povrat toplote
110℃ ～ 23℃, 1 hour
≤ 3%
12
Min. radijus savijanja
84mm
Nema preostale deformacije unutrašnjeg i vanjskog prečnika veće od 15%; mora proći test tolerancije unutrašnjeg prečnika.
13
Koeficijent trenja
750mm Diameter, 450°loop, 5kg mass
≤ 0.1
14
Boja i štampa
Vizuelni pregled
Prema specifikaciji kupca
Test
Karakterističan
Metoda ispitivanja
Kriteriji prihvatanja
Physical and Mechanical Properties – tube bundles
1
Vizuelni izgled
Vizuelni pregled,
Vanjski omotač: Crni
Unutrašnja površina rebrasta, a vanjska glatka, bez mjehurića, uvlačenja, ljuštenja, ogrebotina i hrapavosti.
2
Vanjski promjer
 ANMASPC
16.4mm * 16.4mm (± 0.5mm)
3
Debljina stijenke navlake
 ANMASPC
1.20mm ± 0.20mm
4
Pritiskanje
5 minuta @25 bara za svaki kanal
Nema oštećenja i curenja
5
Čvrstoća na vuču
Stopa proširenja:
100 mm/min
≥ 1600N
6
Smrskaj
Dužina uzorka: 250 mm
Opterećenje: 2000N
Trajanje maksimalnog opterećenja: 1 min
Vrijeme oporavka: 1 sat
Nema preostale deformacije unutrašnjeg i vanjskog prečnika veće od 15%; mora proći test tolerancije unutrašnjeg prečnika.
7
Uticaj
IEC 60794-1-2 Metoda E4
5.0J udarac, vrijeme oporavka 1 sat
Nema preostale deformacije unutrašnjeg i vanjskog prečnika veće od 15%; mora proći test tolerancije unutrašnjeg prečnika.
8
Min. radijus savijanja
360mm
Nema preostale deformacije unutrašnjeg i vanjskog prečnika veće od 15%; mora proći test tolerancije unutrašnjeg prečnika.
9
Boja i štampa
Vizuelni pregled
Narančasta ili prema specifikaciji kupca

PRODUCT DETAIL IMAGES

Product Detail

The original product detail images are retained for visual reference. Confirm the quoted model, dimensions and test requirements before ordering.

4-Way HDPE Microduct Tube Bundle for Fiber Cable Blowing detail 1
4-Way HDPE Microduct Tube Bundle for Fiber Cable Blowing detail 2
4-Way HDPE Microduct Tube Bundle for Fiber Cable Blowing detail 3
4-Way HDPE Microduct Tube Bundle for Fiber Cable Blowing detail 4
4-Way HDPE Microduct Tube Bundle for Fiber Cable Blowing detail 5
4-Way HDPE Microduct Tube Bundle for Fiber Cable Blowing detail 6
4-Way HDPE Microduct Tube Bundle for Fiber Cable Blowing detail 7
4-Way HDPE Microduct Tube Bundle for Fiber Cable Blowing detail 8
4-Way HDPE Microduct Tube Bundle for Fiber Cable Blowing detail 9
4-Way HDPE Microduct Tube Bundle for Fiber Cable Blowing detail 10

SELECTION GUIDE

Selecting a 4-way HDPE microduct bundle

Use these checkpoints to prepare a product-specific enquiry and close the fit, test and documentation questions before ordering.

  1. Confirm the pathwaysMatch four inner ducts to cable count and spare capacity.
  2. Check the clearanceConfirm the 7.0 mm duct and 3.0 mm blowing-ball clearance.
  3. Plan the routeUse the 16.4 mm bundle profile and 360 mm bend radius.
  4. Request batch evidenceConfirm pressure, tensile, crush, impact, color, drum and quantity documents.

OEM & PROJECT CAPABILITY

Company capability for telecom supply

Oulu Automatic Equipment presents itself as a supplier of microduct connectors, HDPE microduct systems, cable blowing accessories and pneumatic fittings for telecom contractors, distributors and OEM partners.

Explore company capabilities

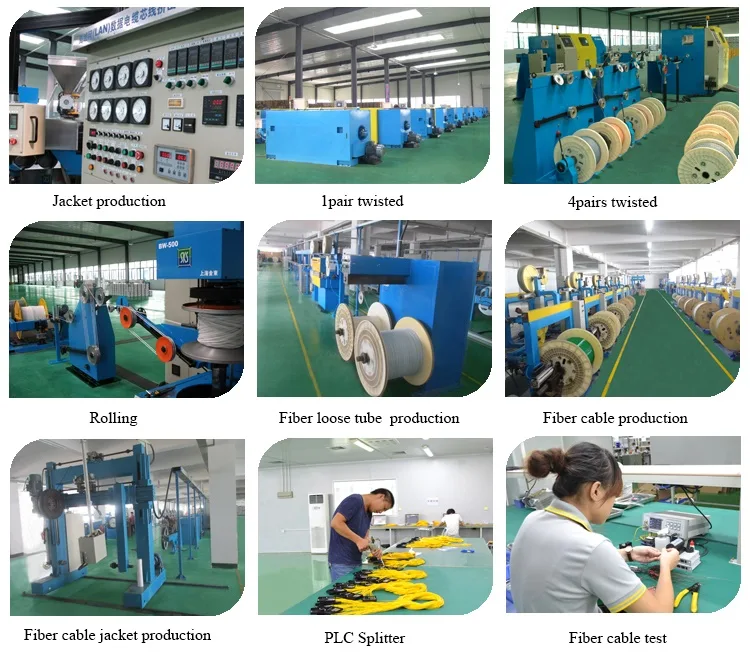

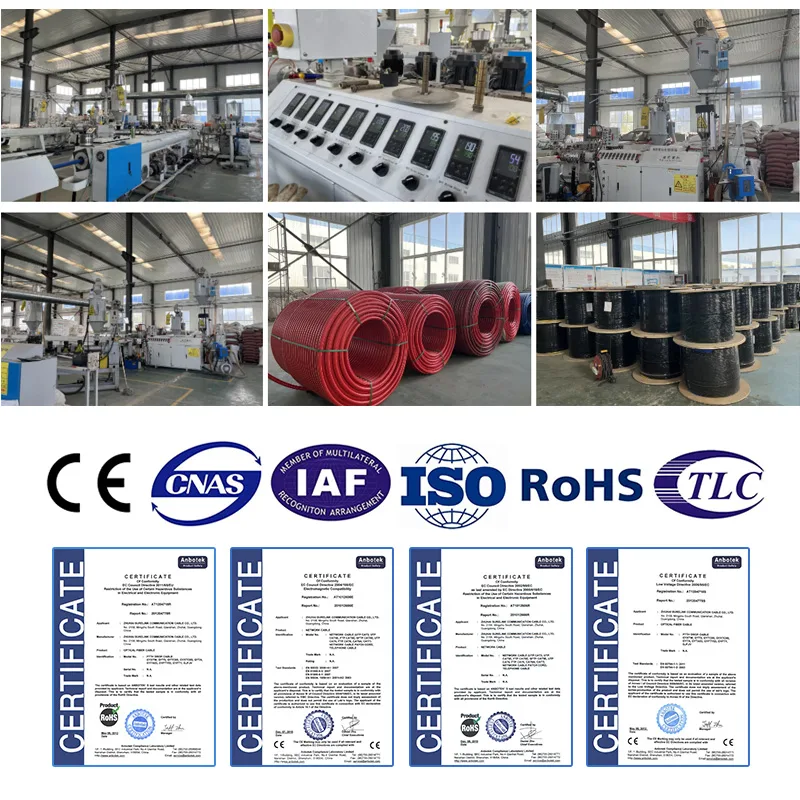

Quality inspection for Oulu microduct connector supply
Warehouse packing for Oulu microduct connector orders

B2B SOURCING SUPPORT

B2B purchasing support

The supplier’s Service page describes support from product consultation and customized solutions through production, delivery and after-sales. Include these details in a product enquiry:

  • Match four inner ducts to cable count and spare capacity.
  • Target quantity, model or size mix, sample needs and packing preference.
  • Drawings, route conditions, pressure or sealing tests and compliance documents.
  • Current MOQ, price, freight, sample timing and production timing to be confirmed in the quotation.

Company-level support and commercial terms should be reconfirmed for the selected product and order.

Share dimensions, route conditions and quantities for a product-specific quotation.Send product requirements

PROJECT SUPPORT

Plan the right microduct solution

Review the microduct route solutions i Usluga pages for project context, then confirm exact fit, documents and commercial terms in the quotation.

Discuss your project

Često postavljana pitanja

Često postavljana pitanja

What is a 4-way HDPE microduct bundle used for?

It provides four HDPE pathways for fiber-optic cable blowing in telecom routes.

What inner duct size is stated?

The source states 7.0 mm inner-duct outside diameter with a 1.2 mm wall.

What is the bundle profile?

The published bundle profile is 16.4 mm × 16.4 mm ±0.5 mm.

What tensile strength is stated?

The source states inner tensile strength of at least 470 N and bundle tensile strength of at least 1,600 N.

What bend radius is listed?

A 360 mm minimum bundle bend radius is stated.

What should a bundle enquiry include?

Provide way count, duct dimensions, route length, bend limits, drum packing, quantity and test documents.
