Zhejiang Oulu Automatic Equipment Co., Ltd. Kısa Açıklama: AÇIKLAMA: Redüksiyon konnektörleri, farklı dış çaplara sahip iki mikro kanalın birbirine bağlanmasını sağlar. Tipik olarak bu durum, eve giren DB'den DI mikro kanala geçiş noktasıdır. METAL FREE veya REINFORCED arasında doğru boyutu bulamadıysanız, bunlardan birini seçin. ANA ÖZELLİKLER: ① Emniyet klipsleri dahildir ② Geçme (push-fit) teknolojisi ③ Çalışma Basıncı: maks. 25 bar

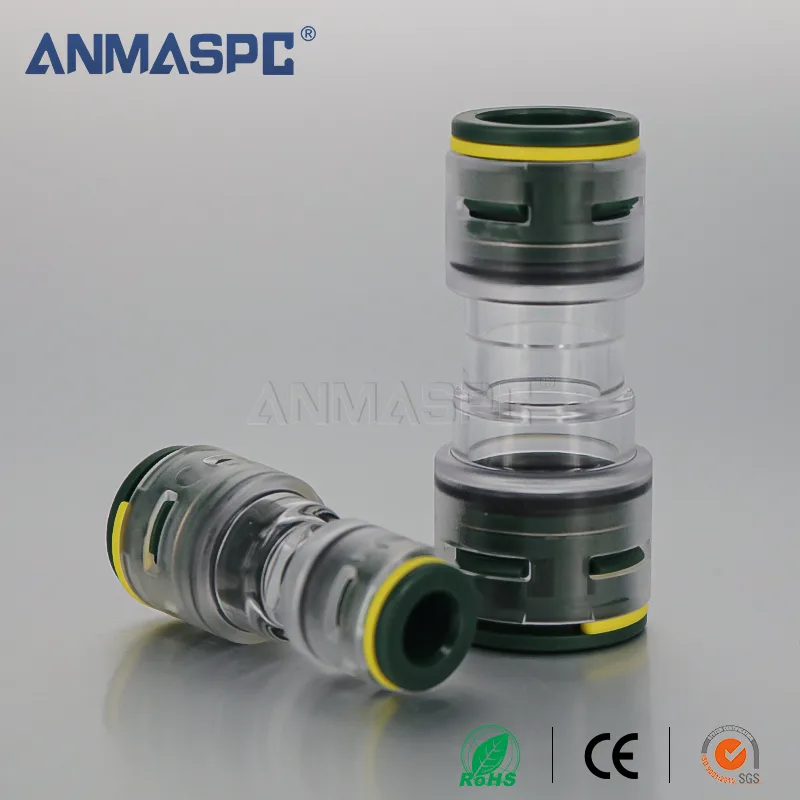

Microduct reducer coupler for different-size duct connections
This microduct reducer coupler is presented for connecting two microducts with different outside diameters, such as a direct-buried-to-indoor transition.
The source lists FPG reducer codes, push-fit technology, pre-installed safety clips, IP68 protection and a maximum working-pressure statement. Confirm both tube dimensions, the correct tapered-hole code and the route test conditions before ordering.
TECHNICAL DETAILS
Published product facts

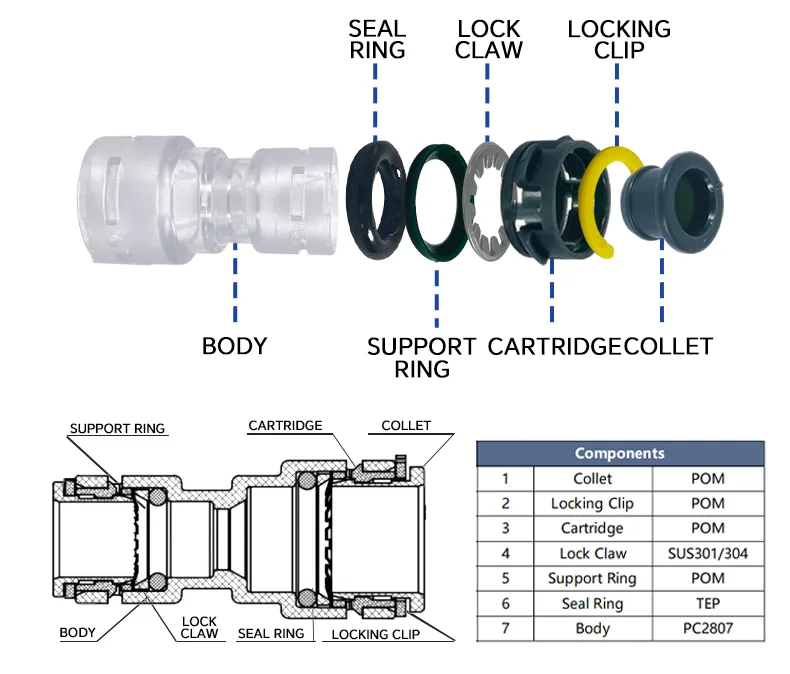

Bileşenler
1
Kovan (Pens)
POM
2
Emniyet Klipsi
POM
3
Kartuş
POM
4
Kilit Pençesi
SUS301/304
5
Destek Halkası
POM
6
Mühür Yüzüğü
TEP
7
Gövde
PC2807
Fit Tüpü
Boru malzemesi
HDPE、PE、Nylon、Polyurethane
Borunun dış çapı
Φ3,Φ4,Φ5,Φ6,Φ7,Φ8,Φ10,Φ12,Φ16,Φ18,Φ20
Technical Parameter
Akışkanlarla çalışmak
Hava
Gerginlik
0.15~0.8MPa Sızıntı Yok
Çekme testi
400N
Test basıncı
2.5 MPa
Çalışma basıncı aralığı
0~1.6MPa
Ortam sıcaklığı ve akışkan sıcaklığı
-40~60℃
Montaj Sıcaklığı
-10℃/+50℃
Önerilen Üfleme Sıcaklığı
-15℃/+35℃
Koruma derecesi
IP68
UV ışınlarına dayanıklı sınıf
F1
Yerleştirme kuvveti
Maksimum 50N (5kg)
Ömür
25 yıl
Standartlar:
EN 50411-2-8
MADDE TABLOSU
ANMASPC Kodu
Pipe OD/ID
Pipe OD/ID
Tapered hole
FPG5-3/2.1
5/3.5
3/2.1
3,5>2,1
FPG5-4/2.8
5/3.5
4/2.8
3,5>2,8
FPG7-3/2.1
7/5.5
3/2.1
5.5 > 2.1
FPG7-4/2.8
7/5.5
4/2.8
5.5>2.8
FPG7-5/3.5
7/5.5
5/3.5
5.5>3.5
FPG8-3/2.1
8/6
3/2.1
6>2,1
FPG8-5/3.5
8/6
5/3.5
6>3.5
FPG8-7/5.5
8/6
7/5.5
6>5,5
FPG10-5/3.5
10/8
5/3.5
8>3,5
FPG10-7/5.5
10/8
7/5.5
8 > 5,5
FPG10-8/6
10/8
8/6
8>6
FPG12-7/5.5
12/10
10/8
10>5,5
FPG12-8/6
12/10
7/5.5
10>6
FPG12-10/8
12/10
12/10
10>8
FPG14-10/8
14/12
8/6
12>8
FPG14-12/10
14/12
10/8
12>10
FPG16-10/8
16/13
10/8
13>8
FPG16-12/10
16/13
12/10
13>10
FPG20-16/14
20/16
16/13
16>13

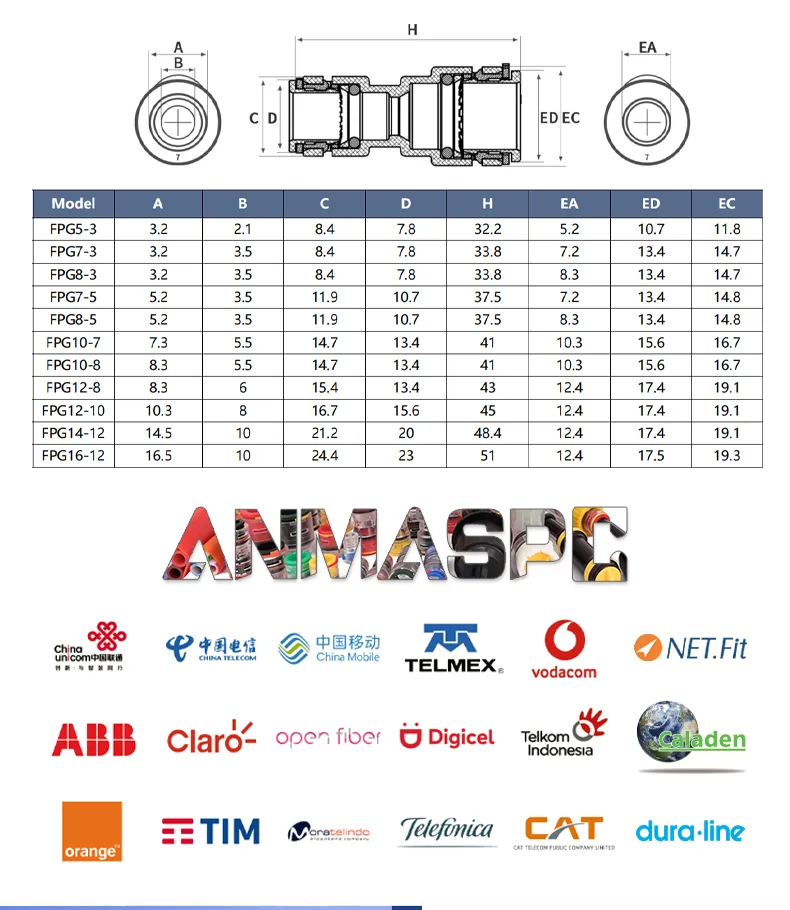

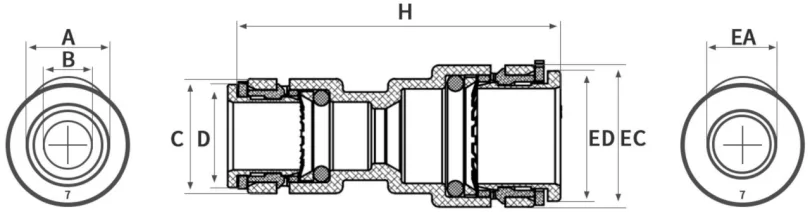

Genel Boyutlar
Model
A
B
C
D
H
EA
ED
AT
FPG5-3
3.2
2.1
8.4
7.8
32.2
5.2
10.7
11.8
FPG7-3
3.2
3.5
8.4
7.8
33.8
7.2
13.4
14.7
FPG8-3
3.2
3.5
8.4
7.8
33.8
8.3
13.4
14.7
FPG7-5
5.2
3.5
11.9
10.7
37.5
7.2
13.4
14.8
FPG8-5
5.2
3.5
11.9
10.7
37.5
8.3
13.4
14.8
FPG10-7
7.3
5.5
14.7
13.4
41
10.3
15.6
16.7
FPG10-8
8.3
5.5
14.7
13.4
41
10.3
15.6
16.7
FPG12-8
8.3
6
15.4
13.4
43
12.4
17.4
19.1
FPG12-10
10.3
8
16.7
15.6
45
12.4
17.4
19.1
FPG14-12
14.5
10
21.2
20
48.4
12.4
17.4
19.1
FPG16-12
16.5
10
24.4
23
51
12.4
17.5
19.3
PRODUCT DETAIL IMAGES

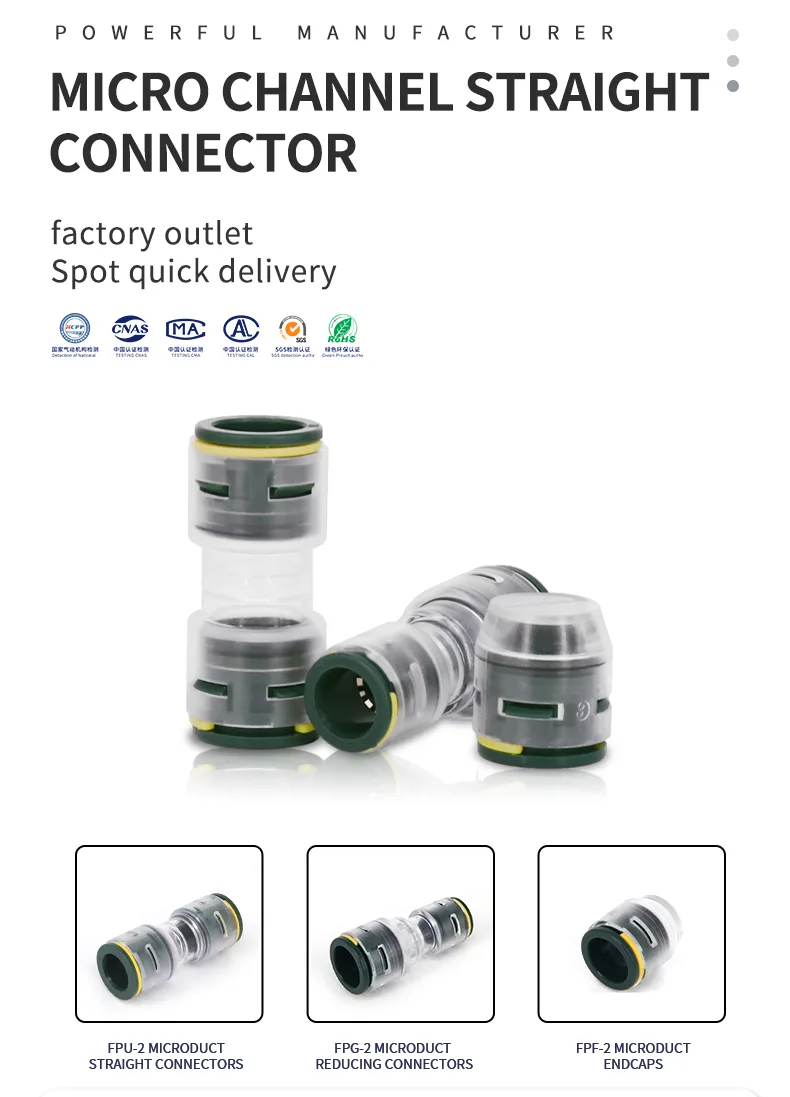

Product Detail
The original product detail images are retained below for visual reference. Confirm the quoted model and dimensions before ordering.
SELECTION GUIDE
Choosing a reducer coupler for a duct transition
Use these checkpoints to prepare a product-specific enquiry and close the fit, test and documentation questions before ordering.
Measure both sidesSend the OD/ID and material of the larger and smaller microduct.
Identify the transitionState whether the joint is DB-to-DI, house entry, chamber or another route point.
Match the FPG codeRequest the correct reducer code and tapered-hole dimensions from the published table.
Confirm the testsShare pressure, leak, pull and cable-blowing requirements plus current document needs.
OEM & PROJECT CAPABILITY
Company capability for telecom supply
Oulu Automatic Equipment presents itself as a supplier of microduct connectors, HDPE microduct systems, cable blowing accessories and pneumatic fittings for telecom contractors, distributors and OEM partners.
The supplier’s Service page describes support from product consultation and customized solutions through production, delivery and after-sales. Include these details in a product enquiry:
Send the OD/ID and material of the larger and smaller microduct.
Target quantity, model or size mix, sample needs and packing preference.
Drawings, route conditions, pressure or sealing tests and compliance documents.
Current MOQ, price, freight, sample timing and production timing to be confirmed in the quotation.
Company-level support and commercial terms should be reconfirmed for the selected product and order.
Share dimensions, route conditions and quantities for a product-specific quotation.Send product requirements
PROJECT SUPPORT
Plan the right microduct solution
Review the microduct route solutions ve Hizmet pages for project context, then confirm exact fit, documents and commercial terms in the quotation.
