Reducer Microduct Connector

Zhejiang Oulu Automatic Equipment Co., Ltd. Short Description: DESCRIPTION： Reducing connectors allows interconnection between two micro-ducts with different outer diameter. Typically this is the case of transition point from DB to DI micro-duct entering the house. If you have not fnd your correct size among METAL FREE or REINFORCED than choose one of these. MAIN FEATURES： ① Safety clips included ② Push-ft technology ③ Working Pressure: max. 25 bars

CategoryMicroduct Connectors

Send Inquiry Product Details

Product Details

Short Description:

DESCRIPTIONï¼

Reducing connectors allows interconnection between two micro-ducts with different outer diameter. Typically this is the case of transition point from DB to DI micro-duct entering the house. If you have not fnd your correct size among METAL FREE or REINFORCED than choose one of these.

MAIN FEATURESï¼

â Safety clips included

â¡Â Push-ft technology

â¢Â Working Pressure: max. 25 bars

Description

Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Reducer Microduct Connector detail image 1

Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Reducer Microduct Connector detail image 2

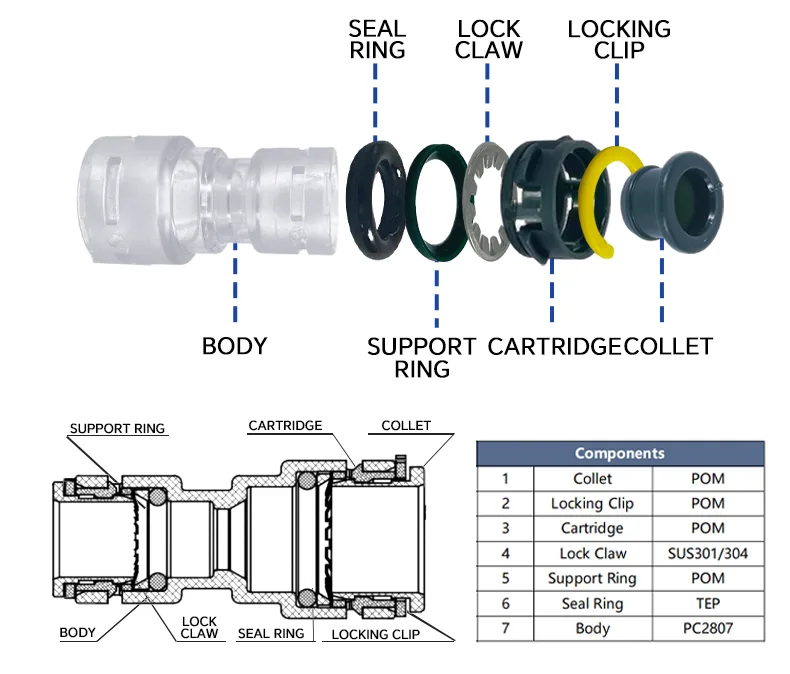

Components

Collet

POM

Locking Clip

POM

Cartridge

POM

Lock Claw

SUS301/304

Support Ring

POM

Seal Ring

TEP

Body

PC2807

Fit Tube

Pipe material

HDPEãPEãNylonãPolyurethane

Outer diameter of pipe

Î¦3,Î¦4,Î¦5,Î¦6,Î¦7,Î¦8,Î¦10,Î¦12,Î¦16,Î¦18,Î¦20

TechnicalÂ Parameter

Working with fluids

Air

Tightness

0.15~0.8MPa No Leak

Pull test

400N

Proof pressure

2.5MPa

Operating pressure range

0~1.6MPa

Ambient temperature and fluid temperature

-40~60â

Installation Temperature

Â -10â/+50â

Recommended Blowing Temperature

Â -15â/+35â

Degree of protection

IP68

UV-resistant gradeÂ

Insertion force

50N max(5kg)

Lifespan:

25 years

StAndards:

EN 50411-2-8

TABLE OF ARTICLES

ANMASPC Code

Pipe OD/ID

Pipe OD/IDÂ Â Â Â

Tapered hole

FPG5-3/2.1

5/3.5

3/2.1Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â

3.5>2.1

FPG5-4/2.8

5/3.5

4/2.8Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â

Â 3.5>2.8

FPG7-3/2.1

7/5.5

3/2.1Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â

Â 5.5>2.1

FPG7-4/2.8

7/5.5

4/2.8Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â

5.5>2.8

FPG7-5/3.5

7/5.5

5/3.5Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â

5.5>3.5

FPG8-3/2.1

8/6

3/2.1Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â

6>2.1

FPG8-5/3.5

8/6

5/3.5Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â

6>3.5

FPG8-7/5.5

8/6

7/5.5Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â

6>5.5

FPG10-5/3.5

10/8

5/3.5Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â

8>3.5

FPG10-7/5.5

10/8

7/5.5Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â

8>5.5

FPG10-8/6

10/8

8/6

8>6

FPG12-7/5.5

12/10

7/5.5Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â

10>5.5

FPG12-8/6

12/10

8/6Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â

10>6

FPG12-10/8

12/10

10/8Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â

10>8

FPG14-10/8

14/12

10/8Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â

12>8

FPG14-12/10

14/12

12/10Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â

12>10

FPG16-10/8

16/13

10/8Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â

13>8

FPG16-12/10

16/13

12/10Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â

13>10

FPG20-16/14

20/16

16/13Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â

16>13

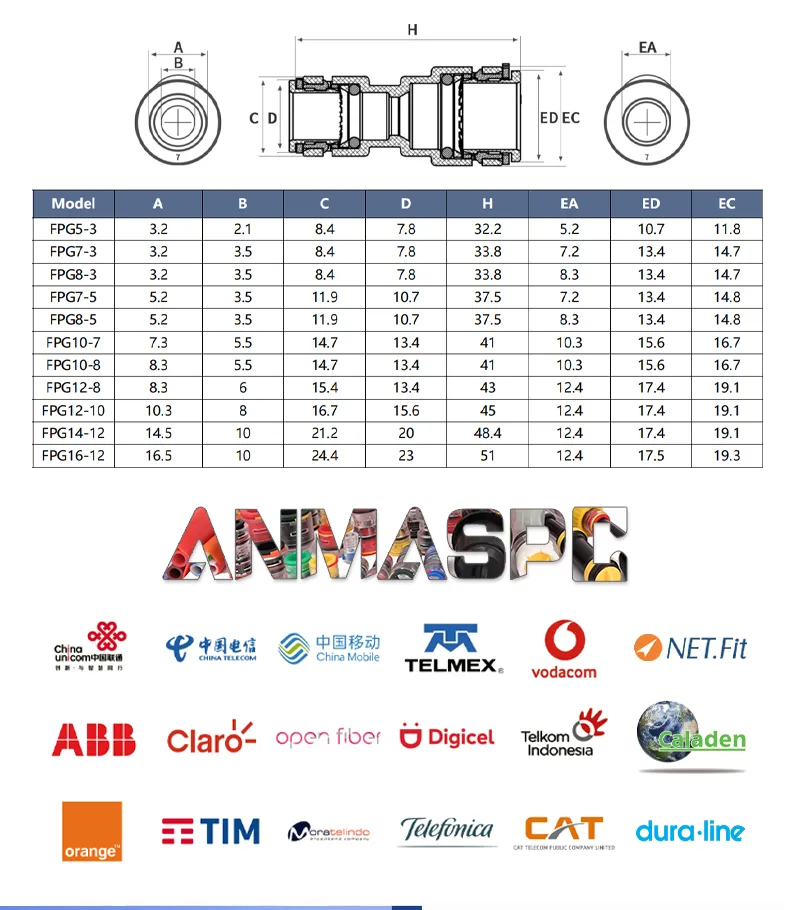

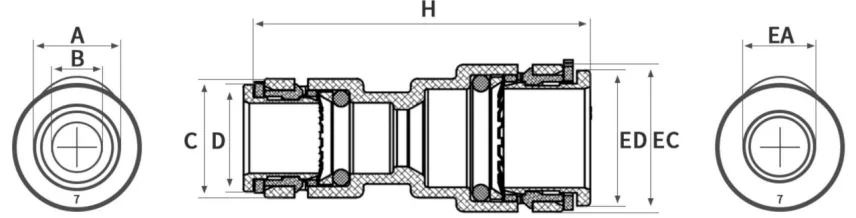

Overall Dimensions

Reducer Microduct Connector detail image 3

Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â

Model

FPG5-3

3.2

2.1

8.4

7.8

32.2

5.2

10.7

11.8

FPG7-3

3.2

3.5

8.4

7.8

33.8

7.2

13.4

14.7

FPG8-3

3.2

3.5

8.4

7.8

33.8

8.3

13.4

14.7

FPG7-5

5.2

3.5

11.9

10.7

37.5

7.2

13.4

14.8

FPG8-5

5.2

3.5

11.9

10.7

37.5

8.3

13.4

14.8

FPG10-7

7.3

5.5

14.7

13.4

41.0

10.3

15.6

16.7

FPG10-8

8.3

5.5

14.7

13.4

41.0

10.3

15.6

16.7

FPG12-8

8.3

15.4

13.4

43.0

12.4

17.4

19.1

FPG12-10

10.3

16.7

15.6

45.0

12.4

17.4

19.1

FPG14-12

14.5

21.2

48.4

12.4

17.4

19.1

FPG16-12

16.5

24.4

51.0

12.4

17.5

19.3

Reducer Microduct Connector detail image 4

Reducer Microduct Connector detail image 5

Reducer Microduct Connector detail image 6

Reducer Microduct Connector detail image 7

Reducer Microduct Connector detail image 8

Reducer Microduct Connector detail image 9

Reducer Microduct Connector detail image 10

Reducer Microduct Connector detail image 11

Reducer Microduct Connector detail image 12
