HDPE TUBE 4 ways 12/10mm

Zhejiang Oulu Automatic Equipment Co., Ltd. Short Description: Model Number:4ways DB Tube Bundle Place of Origin:Wenzhou, China Brand Name:ANMASPC *Aging-resistant, anti corrosion of chemicals. *HDPE Sub Duct is convenient in construction, save time and the project cost. *Waterproof, damp-proof, fibre blowing microduct can avoid the damage by rodent animals.   FOB Price: US $0.5 - 9,999 / Piece Min.Order Quantity: 100 Piece/Pieces Supply Ability: 10000 Piece/Pieces per Month

КатегорияHDPE микродукттары
Суроо жөнөтүү Өнүмдүн өзгөчөлүктөрү

HDPE MICRODUCTS

4-way 12/10 mm direct-buried HDPE microduct tube bundle

This 4-way DB HDPE microduct tube bundle is presented for telecom, underground and FTTH air-blown cable installation.

The source states 12/10 mm inner ducts, 3.4 mm sheath, 35.8 mm bundle OD, at least 4,600 N tensile strength, 2,000 N crush load and a 720 mm bundle bend radius. Confirm the route drawing and current batch test documents.

TECHNICAL DETAILS

Published product facts

Бул нерсе Published information
Product type 4-way DB tube bundle for FTTH
Inner microduct 12 mm outside diameter / 10 mm inside diameter
Bundle dimensions 35.8 mm outer diameter ±1.1 mm; 3.4 mm sheath
Supplier-stated mechanics Tensile strength ≥4,600 N; crush 2,000 N; impact 10 J; bundle bend radius 720 mm
Temperature statements Storage -40 to +70 °C; installation -30 to +50 °C; operating -40 to +70 °C

PRODUCT DETAIL IMAGES

Product Detail

The original product detail images are retained for visual reference. Confirm the quoted model, dimensions and test requirements before ordering.

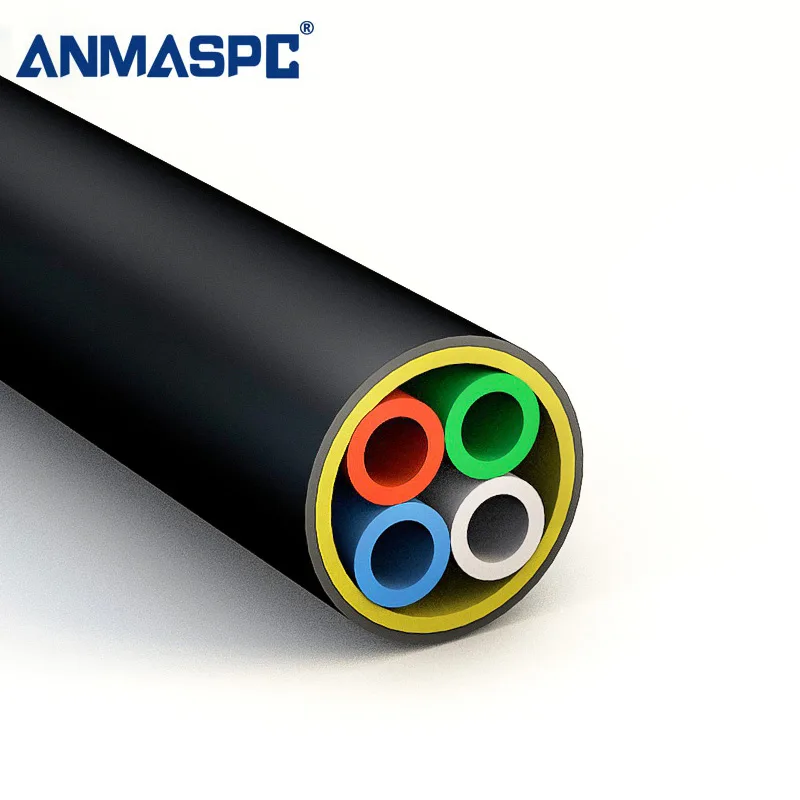

4-Way 12/10 mm Direct-Buried HDPE Microduct Tube Bundle detail 1

SELECTION GUIDE

Selecting a 4-way 12/10 mm microduct bundle

Use these checkpoints to prepare a product-specific enquiry and close the fit, test and documentation questions before ordering.

  1. Confirm capacityMatch four pathways to the cable and spare requirement.
  2. Check cable clearanceConfirm the 10 mm inner diameter and blowing method.
  3. Plan the buried routeUse the 35.8 mm bundle OD and 720 mm bundle bend radius.
  4. Request test evidenceConfirm pressure, tensile, crush, impact, color, drum and quantity documents.

OEM & PROJECT CAPABILITY

Company capability for telecom supply

Oulu Automatic Equipment presents itself as a supplier of microduct connectors, HDPE microduct systems, cable blowing accessories and pneumatic fittings for telecom contractors, distributors and OEM partners.

Explore company capabilities

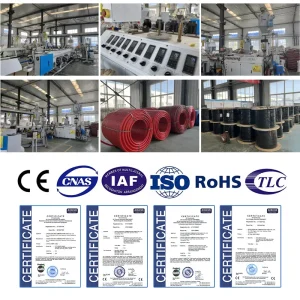

Quality inspection for Oulu microduct connector supply

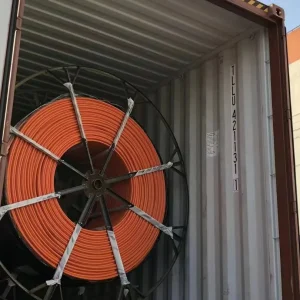

Warehouse packing for Oulu microduct connector orders

B2B SOURCING SUPPORT

B2B purchasing support

The supplier’s Service page describes support from product consultation and customized solutions through production, delivery and after-sales. Include these details in a product enquiry:

  • Match four pathways to the cable and spare requirement.
  • Target quantity, model or size mix, sample needs and packing preference.
  • Drawings, route conditions, pressure or sealing tests and compliance documents.
  • Current MOQ, price, freight, sample timing and production timing to be confirmed in the quotation.

Company-level support and commercial terms should be reconfirmed for the selected product and order.

Share dimensions, route conditions and quantities for a product-specific quotation.Send product requirements

PROJECT SUPPORT

Plan the right microduct solution

Review the Кызмат page for project context, then confirm exact fit, documents and commercial terms in the quotation.

Discuss your project

Көп берилүүчү суроолор

Көп берилүүчү суроолор

What is a 4-way 12/10 mm microduct bundle used for?

It provides four HDPE pathways for underground telecom and air-blown cable installation.

What are the inner duct dimensions?

The source states 12 mm outside diameter and 10 mm inside diameter.

What is the bundle outside diameter?

The published bundle outside diameter is 35.8 mm ±1.1 mm.

What tensile strength is stated?

The supplier states bundle tensile strength of at least 4,600 N.

What temperature range is listed?

Storage and operation are stated as -40 to +70 °C, with installation from -30 to +50 °C.

What should a 4-way bundle enquiry include?

Provide way count, OD/ID, burial route, bend limits, drum packing, quantity and current test documents.
