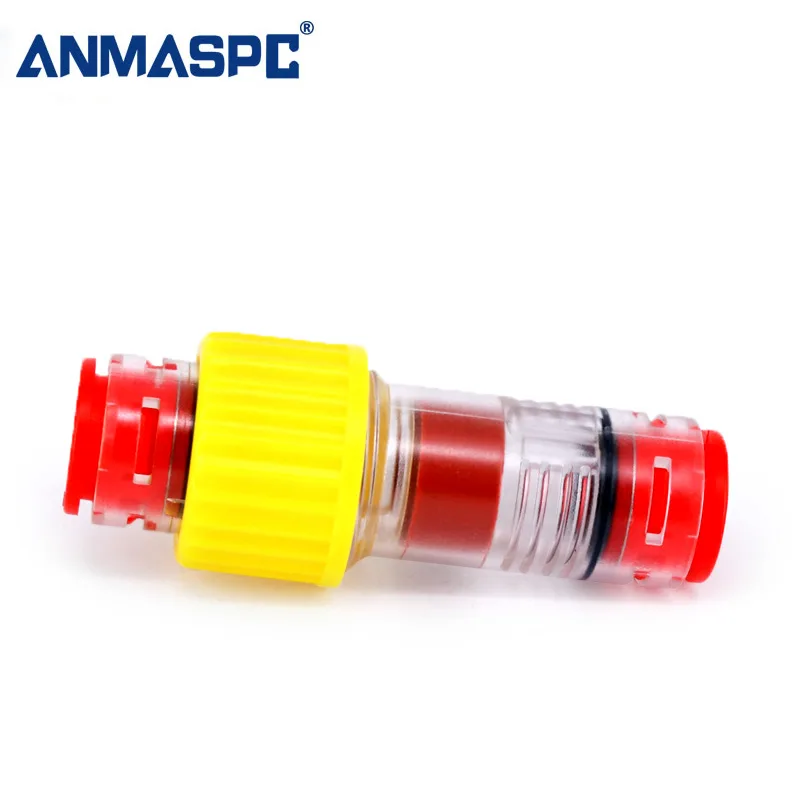

Vodootporni blok za zrak i plin

TECHNICAL DETAILS

Published product facts

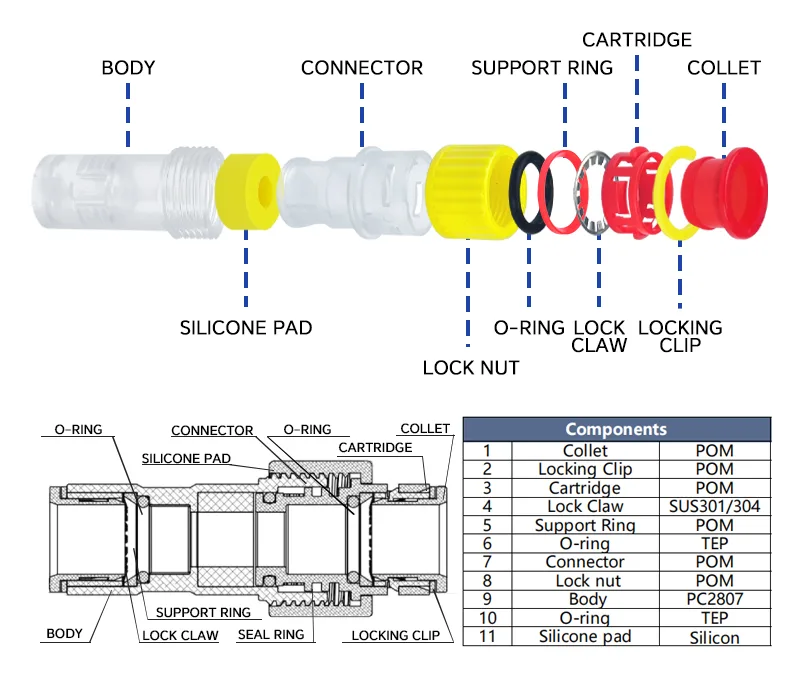

Komponente

1

Koleta

POM

2

Kvačica za zaključavanje

POM

3

Patron

POM

4

Kandža-zaključavanje

SUS301/304

5

Prsten za podršku

POM

6

O-prsten

TEP

7

Konektor

POM

8

Lock nut

POM

9

Tijelo

PC2807

10

O-prsten

TEP

11

Silikonska podloga

Silikonska guma

Fit cijev

Materijal cijevi

HDPE、PE、Nylon、Polyurethane

Vanjski promjer cijevi

Φ3,Φ4,Φ5,Φ6,Φ7,Φ8,Φ10,Φ12,Φ16,Φ18,Φ20

Technical parameter

Rad sa tečnostima

Zrak

Zategnutost

0,15~0,8 MPa

Test vučenja

400N

Dokazni pritisak

2,5 MPa

Raspon radnog pritiska

0~1,6 MPa

Ambijentalna temperatura i temperatura tečnosti

-40~60℃

Stepen zaštite

IP68

Sila umetanja

50N max (5kg)

SADRŽAJ ČLANAKA

ANMASPC kod

Vanjski prečnik / unutrašnji prečnik cijevi

Vanjski prečnik / unutrašnji prečnik cijevi

Domet blokiranja kabela

FZA5/3.5

5/3.5

5/3.5

0.5-2.1

FZA5/3.5

5/3.5

5/3.5

0.9-3.5

FZA7/5.5

7/5.5

7/5.5

0.9-3.5

FZA7/5.5

7/5.5

7/5.5

1-4

FZA7/5.5

7/5.5

7/5.5

2-5.5

FZA8/6

8/6

8/6

0.9~3.5

FZA10/8

10/8

10/8

3-6

FZA10/8

10/8

10/8

5-8

FZA12/10

12/10

12/10

3~6

FZA12/10

12/10

12/10

5~8

FZA12/10

12/10

12/10

7-10

FZA14/12

14/12

14/12

3~6

FZA14/12

14/12

14/12

5~8

FZA14/12

14/12

14/12

7~10

FZA14/12

14/12

14/12

9-12

FZA16/12

16/12

16/12

3~6

FZA16/12

16/12

16/12

5~8

FZA16/12

16/12

16/12

7~10

FZA18/15

18/15

18/15

7-10

FZA18/15

18/15

18/15

9-12

FZA20/16

20/16

20/16

12~16

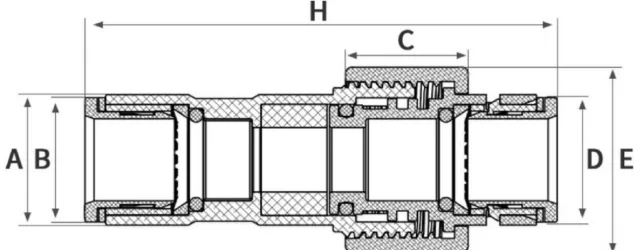

Ukupne dimenzije

Model

A

B

C

D

E

H

FZA5

12

5

11

11

17

47

FZA7

16

7

13

14

22

52

FZA8

16

8

13

14

22

52

FZA10

17

10

18

16

25

80

FZA12

19

12

19

18

27

52

FZA14

23

15

20

20

31

83

FZA16

25

17

20

23

35

77

FZA18

29

19

27

28

42

103

FZA20

34

21

31

33

48

118
